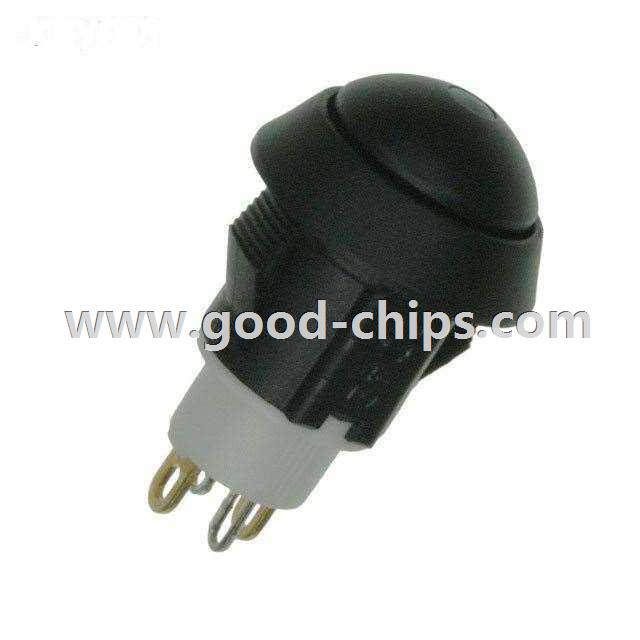

| Manufacturer Part Number: | AP2D203SZBE |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Pushbutton Switches |
| Available Quantity: | 9056 Pieces |
| Unit Price: | Quote by Email |
| Description: | Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Snap-In |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AP2D203SZBE Datasheet |
| Internal Part Number | 898-AP2D203SZBE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | AP Series SPST Sealed IP67 Pushbutton Switches | |
| Featured Product | Industrial Pushbutton Switches | |
| 3D Model | APxDx0xSZBE.stp APxDx0xSZBE.pdf | |
| Category | Switches | |
| Family | Pushbutton Switches | |
| Manufacturer | C&K Components | |
| Series | AP | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Standard, Illuminated | |
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Current Rating | 125mA (AC), 200mA (DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 24V | |
| Actuator Type | Round, Button, Domed | |
| Color - Actuator/Cap | Black | |
| Illumination Type, Color | LED, Red | |
| Illumination Voltage (Nominal) | 2 VDC | |
| Mounting Type | Panel Mount, Snap-In | |
| Termination Style | Solder Lug | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Features | - | |
| Panel Cutout Dimensions | Circular - 13.80mm Dia | |
| Operating Temperature | -40°C ~ 85°C | |
| Mechanical Life | 1,000,000 Cycles | |
| Electrical Life | 1,000,000 Cycles | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AP2D203SZBE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AP2D203SZBE is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of AP2D203SZBE is new and unused, you can buy AP2D203SZBE C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AP2D203SZBE.
