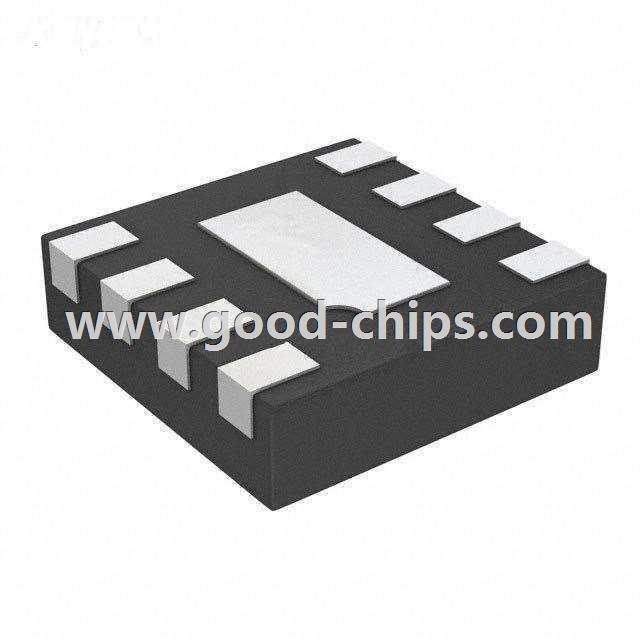

.jpg)
| Manufacturer Part Number: | AP22850SH8-7 |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | PMIC - Power Distribution Switches, Load Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC LOAD SWITCH 10V 1CH 8UDFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AP22850SH8-7 Datasheet |
| Internal Part Number | 898-AP22850SH8-7 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | General Purpose | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Power Distribution Switches, Load Drivers | |
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Switch Type | General Purpose | |
| Number of Outputs | 1 | |
| Ratio - Input:Output | 1:1 | |
| Output Configuration | High Side | |
| Output Type | P-Channel | |
| Interface | On/Off | |
| Voltage - Load | 4.5 V ~ 11 V | |
| Voltage - Supply (Vcc/Vdd) | 2.5 V ~ 5.5 V | |
| Current - Output (Max) | 8A | |
| Rds On (Typ) | 21 mOhm | |
| Input Type | - | |
| Features | Load Discharge, Power Good, Slew Rate Controlled | |
| Fault Protection | - | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Package / Case | 8-VFDFN Exposed Pad | |
| Supplier Device Package | 8-WDFN (2x2) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AP22850SH8-7 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AP22850SH8-7 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of AP22850SH8-7 is new and unused, you can buy AP22850SH8-7 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AP22850SH8-7.
