| Manufacturer Part Number: | AP1117Y50L-13 |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | PMIC - Voltage Regulators - Linear |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Linear Voltage Regulator IC Positive Fixed 1 Output 5V 1A SOT-89-3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AP1117Y50L-13 Datasheet |
| Internal Part Number | 898-AP1117Y50L-13 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Cert of Compliance | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - Linear | |
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Regulator Topology | Positive Fixed | |
| Voltage - Output | 5V | |
| Current - Output | 1A | |
| Voltage - Dropout (Typical) | 1.3V @ 1A | |
| Number of Regulators | 1 | |
| Voltage - Input | 6.4 V ~ 18 V | |
| Current - Limit (Min) | 1.1A | |
| Operating Temperature | 0°C ~ 125°C | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-243AA | |

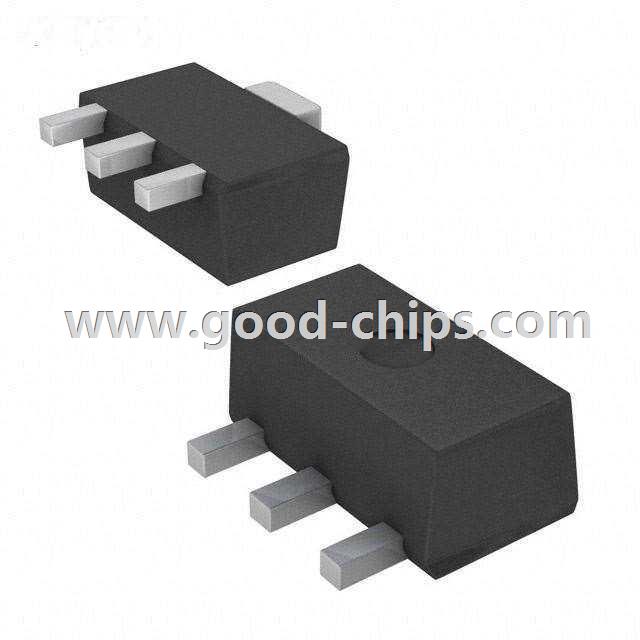

| Supplier Device Package | SOT-89-3 | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AP1117Y50L-13 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AP1117Y50L-13 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of AP1117Y50L-13 is new and unused, you can buy AP1117Y50L-13 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AP1117Y50L-13.
