| Manufacturer Part Number: | AP1017AEN |
|---|---|
| Manufacturer: | AKM Semiconductor Inc. |
| Product Category: | PMIC - Full, Half-Bridge Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC H-BRIDGE DVR 1CH 12V 8SON |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AP1017AEN Datasheet |
| Internal Part Number | 898-AP1017AEN | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Full, Half-Bridge Drivers | |
| Manufacturer | AKM Semiconductor Inc. | |
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Output Configuration | Half Bridge (2) | |
| Applications | General Purpose | |
| Interface | Logic | |
| Load Type | Inductive | |
| Technology | Power MOSFET | |
| Rds On (Typ) | 470 mOhm LS + HS | |
| Current - Output / Channel | 1.56A | |
| Current - Peak Output | 3.3A | |
| Voltage - Supply | 2.7 V ~ 3.6 V | |
| Voltage - Load | 1.8 V ~ 12 V | |
| Operating Temperature | -30°C ~ 150°C (TJ) | |
| Features | - | |
| Fault Protection | Over Temperature, UVLO | |
| Mounting Type | Surface Mount | |

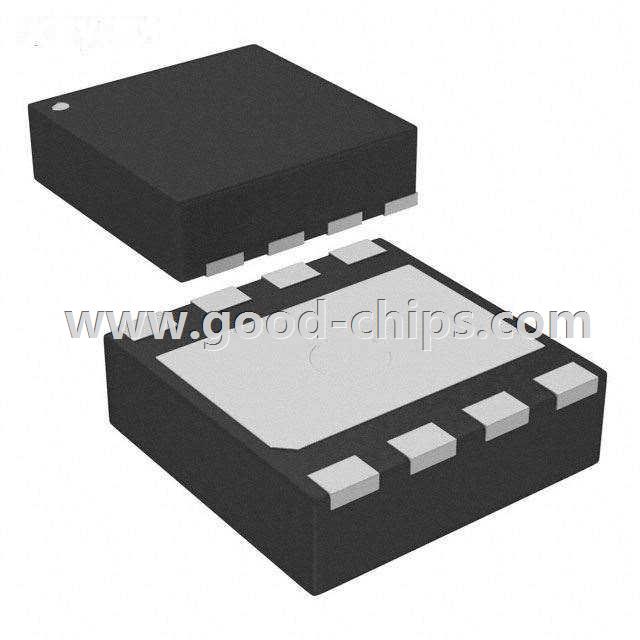

| Package / Case | 8-UFDFN Exposed Pad | |
| Supplier Device Package | 8-SON (2x2) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AP1017AEN | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AP1017AEN is in stock for immediate shipping now. We are the distributor of AKM Semiconductor Inc. all series components. The condition of AP1017AEN is new and unused, you can buy AP1017AEN AKM Semiconductor Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AP1017AEN.
