Manufacturer Part Number: | AON4807_001 |
---|---|
Manufacturer: | Alpha & Omega Semiconductor Inc. |
Product Category: | Transistors - FETs, MOSFETs - Arrays |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET 2P-CH 30V 4A 8DFN |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AON4807_001 Datasheet |
Internal Part Number | 898-AON4807_001 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | AOS Green Policy | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Arrays | |
Manufacturer | Alpha & Omega Semiconductor Inc. | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
FET Type | 2 P-Channel (Dual) | |
FET Feature | Logic Level Gate | |
Drain to Source Voltage (Vdss) | 30V | |
Current - Continuous Drain (Id) @ 25°C | 4A | |
Rds On (Max) @ Id, Vgs | 68 mOhm @ 4A, 10V | |
Vgs(th) (Max) @ Id | 2.3V @ 250µA | |
Gate Charge (Qg) @ Vgs | 10nC @ 10V | |
Input Capacitance (Ciss) @ Vds | 290pF @ 15V | |
Power - Max | 1.9W | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

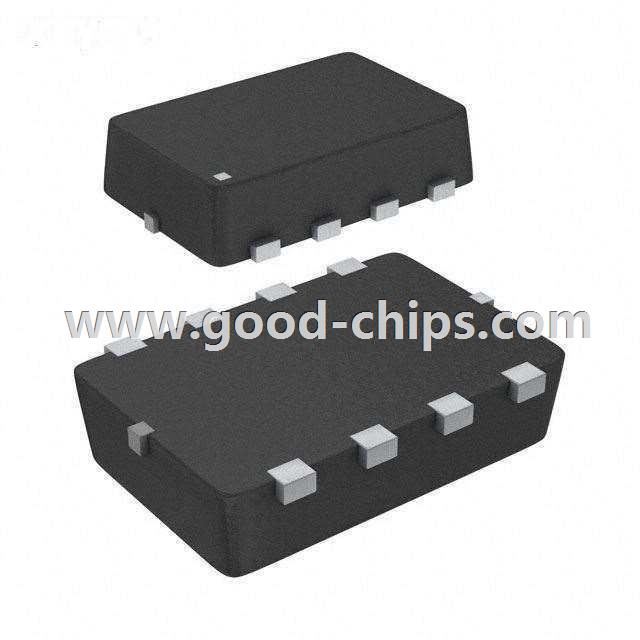

Package / Case | 8-SMD, Flat Lead | |
Supplier Device Package | 8-DFN (3x2) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AON4807_001 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AON4807_001 is in stock for immediate shipping now. We are the distributor of Alpha & Omega Semiconductor Inc. all series components. The condition of AON4807_001 is new and unused, you can buy AON4807_001 Alpha & Omega Semiconductor Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AON4807_001.
