Manufacturer Part Number: | AOCJY5-10.000MHZ |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Oscillators |
Available Quantity: | 9023 Pieces |
Unit Price: | Quote by Email |

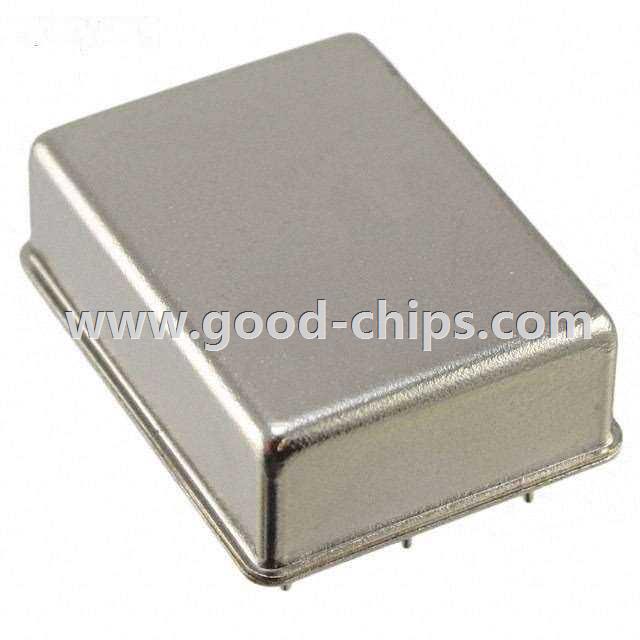

Description: | 10MHz Sine Wave OCXO Oscillator Through Hole 12V Standby (Power Down) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AOCJY5-10.000MHZ Datasheet |
Internal Part Number | 898-AOCJY5-10.000MHZ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | AOCJY5.pdf AOCJY5.stp | |
Online Catalog | AOCJY5 Series | |
Category | Crystals and Oscillators | |
Family | Oscillators | |
Manufacturer | Abracon LLC | |
Series | AOCJY5 | |
Packaging | Tray | |
Part Status | Active | |
Type | OCXO | |
Frequency | 10MHz | |
Function | Standby (Power Down) | |
Output | Sine Wave | |
Voltage - Supply | 12V | |
Frequency Stability | ±50ppb | |
Operating Temperature | -55°C ~ 85°C | |
Current - Supply (Max) | - | |
Ratings | - | |
Mounting Type | Through Hole | |
Size / Dimension | 1.421" L x 1.071" W (36.10mm x 27.20mm) | |
Height | 0.512" (13.00mm) | |
Package / Case | 6-DIP, 5 lead (Metal Can) | |
Current - Supply (Disable) (Max) | - | |
Standard Package | 5 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AOCJY5-10.000MHZ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AOCJY5-10.000MHZ is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of AOCJY5-10.000MHZ is new and unused, you can buy AOCJY5-10.000MHZ Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AOCJY5-10.000MHZ.
