Manufacturer Part Number: | AOCJY1A-12.800MHZ-F-SW |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Oscillators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

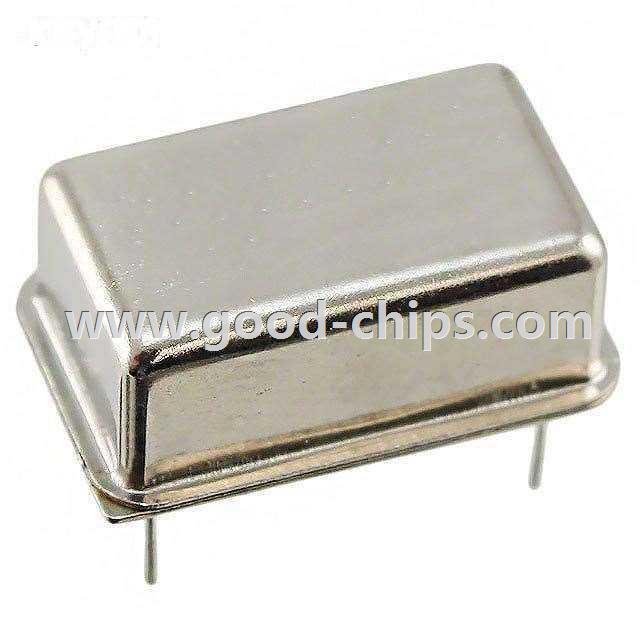

Description: | 12.8MHz Sine Wave OCXO Oscillator Through Hole 5V |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AOCJY1A-12.800MHZ-F-SW Datasheet |
Internal Part Number | 898-AOCJY1A-12.800MHZ-F-SW | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | AOCJY1.pdf AOCJY1.stp | |
Category | Crystals and Oscillators | |
Family | Oscillators | |
Manufacturer | Abracon LLC | |
Series | AOCJY1 | |
Packaging | Tray | |
Part Status | Active | |
Type | OCXO | |
Frequency | 12.8MHz | |
Function | - | |
Output | Sine Wave | |
Voltage - Supply | 5V | |
Frequency Stability | ±500ppb | |
Operating Temperature | -40°C ~ 75°C | |
Current - Supply (Max) | - | |
Ratings | - | |
Mounting Type | Through Hole | |
Size / Dimension | 0.819" L x 0.520" W (20.80mm x 13.20mm) | |
Height | 0.307" (7.80mm) | |
Package / Case | 14-DIP, 4 Leads (Full Size, Metal Can) | |
Current - Supply (Disable) (Max) | - | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AOCJY1A-12.800MHZ-F-SW | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AOCJY1A-12.800MHZ-F-SW is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of AOCJY1A-12.800MHZ-F-SW is new and unused, you can buy AOCJY1A-12.800MHZ-F-SW Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AOCJY1A-12.800MHZ-F-SW.
