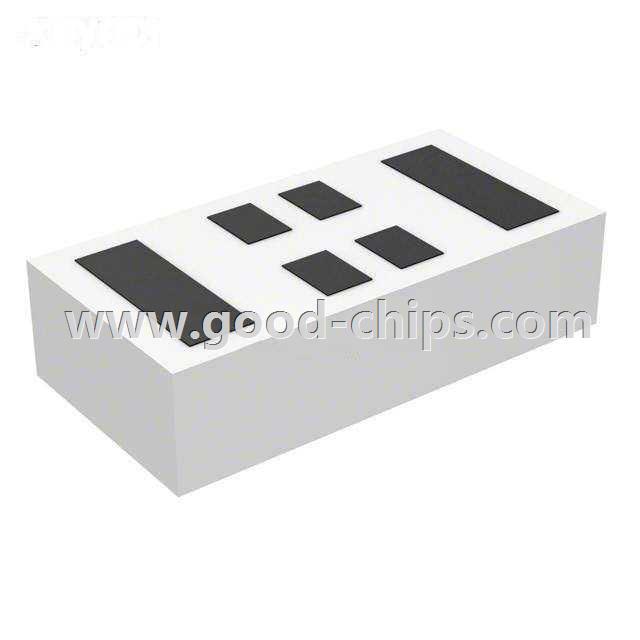

| Manufacturer Part Number: | ANT016008LCD2442MA1 |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | RF Antennas |
| Available Quantity: | 45010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2.4GHz, 5.5GHz WLAN Chip RF Antenna 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz 2.27dBi, 5.18dBi Solder Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ANT016008LCD2442MA1 Datasheet |
| Internal Part Number | 898-ANT016008LCD2442MA1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Featured Product | LTCC Antennas | |
| Online Catalog | TDK - Embedded | |
| Category | RF/IF and RFID | |
| Family | RF Antennas | |
| Manufacturer | TDK Corporation | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Frequency Group | UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz) | |
| Frequency (Center/Band) | 2.4GHz, 5.5GHz | |
| Frequency Range | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | |
| Antenna Type | Chip | |
| Number of Bands | 2 | |
| VSWR | 6.5, 4 | |
| Return Loss | - | |
| Gain | 2.27dBi, 5.18dBi | |
| Power - Max | - | |
| Features | - | |
| Termination | Solder | |
| Ingress Protection | - | |
| Mounting Type | Surface Mount | |
| Height (Max) | 0.016" (0.40mm) | |
| Applications | WLAN | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ANT016008LCD2442MA1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ANT016008LCD2442MA1 is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of ANT016008LCD2442MA1 is new and unused, you can buy ANT016008LCD2442MA1 TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ANT016008LCD2442MA1.
