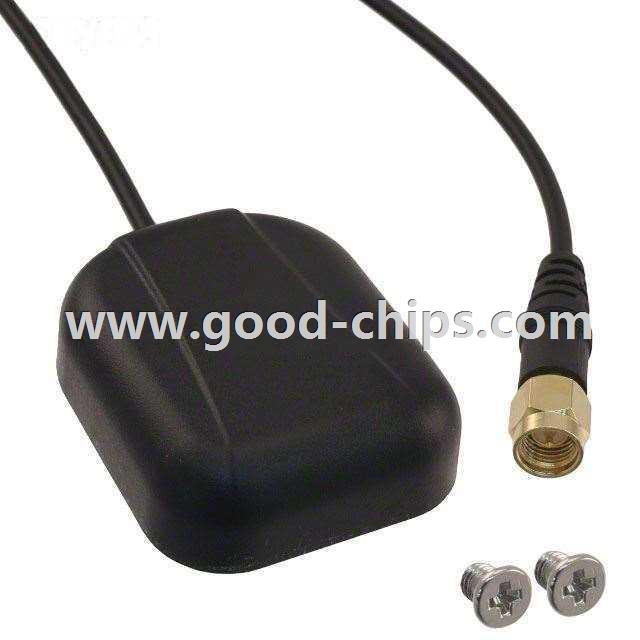

| Manufacturer Part Number: | ANT-GPS-SH-SMA |
|---|---|
| Manufacturer: | Linx Technologies Inc. |
| Product Category: | RF Antennas |
| Available Quantity: | 9659 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1.575GHz GPS Module RF Antenna 1570.42MHz ~ 1580.42MHz 5dB Connector, SMA Male Magnetic, Chassis Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ANT-GPS-SH-SMA Datasheet |
| Internal Part Number | 898-ANT-GPS-SH-SMA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | FCC and Legal Considerations with Linx Radio Modules Introduction to the RF Environment | |
| RoHS Information | RoHS Cert of Compliance | |
| Design Resources | IoT Product Selector | |
| Online Catalog | Linx Technologies - External | |
| Category | RF/IF and RFID | |
| Family | RF Antennas | |
| Manufacturer | Linx Technologies Inc. | |
| Series | SH | |
| Packaging | Bulk | |
| Part Status | Active | |
| Frequency Group | UHF (1 GHz ~ 2 GHz) | |
| Frequency (Center/Band) | 1.575GHz | |
| Frequency Range | 1570.42MHz ~ 1580.42MHz | |
| Antenna Type | Module | |
| Number of Bands | 1 | |
| VSWR | 1.5 | |
| Return Loss | - | |
| Gain | 5dB | |
| Power - Max | - | |
| Features | LNA | |
| Termination | Connector, SMA Male | |
| Ingress Protection | - | |
| Mounting Type | Magnetic, Chassis Mount | |
| Height (Max) | 0.492" (12.50mm) | |
| Applications | GPS | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ANT-GPS-SH-SMA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ANT-GPS-SH-SMA is in stock for immediate shipping now. We are the distributor of Linx Technologies Inc. all series components. The condition of ANT-GPS-SH-SMA is new and unused, you can buy ANT-GPS-SH-SMA Linx Technologies Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ANT-GPS-SH-SMA.
