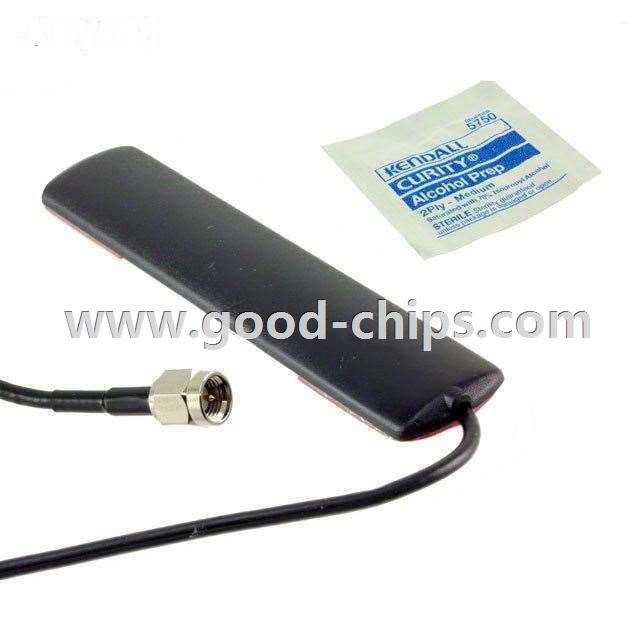

Manufacturer Part Number: | ANT-DB1-VDP-SMA |
---|---|
Manufacturer: | Linx Technologies Inc. |
Product Category: | RF Antennas |
Available Quantity: | 9501 Pieces |
Unit Price: | Quote by Email |
Description: | 892MHz, 1.9GHz, 2.4GHz Flat Bar RF Antenna 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 2.4GHz ~ 2.48GHz -1.8dBi Connector, SMA Male Adhesive |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ANT-DB1-VDP-SMA Datasheet |
Internal Part Number | 898-ANT-DB1-VDP-SMA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | IoT Product Selector | |
Online Catalog | Linx Technologies - External | |
Category | RF/IF and RFID | |
Family | RF Antennas | |
Manufacturer | Linx Technologies Inc. | |
Series | VDP | |
Packaging | Bulk | |
Part Status | Active | |
Frequency Group | Wide Band | |
Frequency (Center/Band) | 892MHz, 1.9GHz, 2.4GHz | |
Frequency Range | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 2.4GHz ~ 2.48GHz | |
Antenna Type | Flat Bar | |
Number of Bands | 3 | |
VSWR | 1.9 | |
Return Loss | - | |
Gain | -1.8dBi | |
Power - Max | - | |
Features | - | |
Termination | Connector, SMA Male | |
Ingress Protection | - | |
Mounting Type | Adhesive | |
Height (Max) | 0.177" (4.50mm) | |
Applications | - | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ANT-DB1-VDP-SMA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ANT-DB1-VDP-SMA is in stock for immediate shipping now. We are the distributor of Linx Technologies Inc. all series components. The condition of ANT-DB1-VDP-SMA is new and unused, you can buy ANT-DB1-VDP-SMA Linx Technologies Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ANT-DB1-VDP-SMA.
