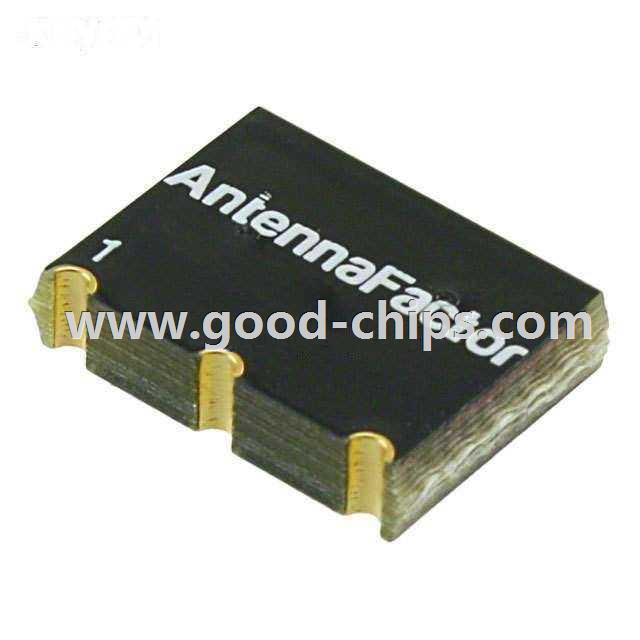

Manufacturer Part Number: | ANT-916-USP |
---|---|
Manufacturer: | Linx Technologies Inc. |
Product Category: | RF Antennas |
Available Quantity: | 13282 Pieces |
Unit Price: | Quote by Email |
Description: | 916MHz Chip RF Antenna 904MHz ~ 928MHz 0.3dBi Solder Surface Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ANT-916-USP Datasheet |
Internal Part Number | 898-ANT-916-USP | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Mfg Application Notes | Proper PCB Design for Embedded Antennas | |
Product Training Modules | FCC and Legal Considerations with Linx Radio Modules Introduction to the RF Environment | |
RoHS Information | RoHS Cert of Compliance | |
Design Resources | IoT Product Selector | |
Online Catalog | Linx Technologies - Embedded | |
Category | RF/IF and RFID | |
Family | RF Antennas | |
Manufacturer | Linx Technologies Inc. | |
Series | µSplatch™ | |
Packaging | Tube | |
Part Status | Active | |
Frequency Group | UHF (300 MHz ~ 1 GHz) | |
Frequency (Center/Band) | 916MHz | |
Frequency Range | 904MHz ~ 928MHz | |
Antenna Type | Chip | |
Number of Bands | 1 | |
VSWR | 2 | |
Return Loss | - | |
Gain | 0.3dBi | |
Power - Max | - | |
Features | - | |
Termination | Solder | |
Ingress Protection | - | |
Mounting Type | Surface Mount | |
Height (Max) | 0.100" (2.54mm) | |
Applications | - | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ANT-916-USP | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ANT-916-USP is in stock for immediate shipping now. We are the distributor of Linx Technologies Inc. all series components. The condition of ANT-916-USP is new and unused, you can buy ANT-916-USP Linx Technologies Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ANT-916-USP.
