Manufacturer Part Number: | ANT-2.4-PW-QW-UFL |
---|---|
Manufacturer: | Linx Technologies Inc. |
Product Category: | RF Antennas |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

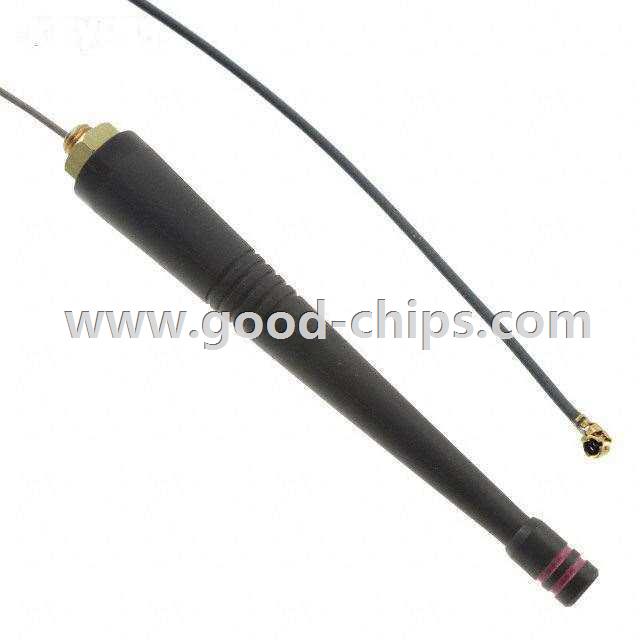

Description: | 2.4GHz Whip, Straight RF Antenna 2.35GHz ~ 2.6GHz 1.6dBi Connector, U.FL Panel Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ANT-2.4-PW-QW-UFL Datasheet |
Internal Part Number | 898-ANT-2.4-PW-QW-UFL | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | FCC and Legal Considerations with Linx Radio Modules Introduction to the RF Environment | |
RoHS Information | RoHS Cert of Compliance | |
Design Resources | IoT Product Selector | |
Online Catalog | Linx Technologies - Embedded | |
Category | RF/IF and RFID | |
Family | RF Antennas | |
Manufacturer | Linx Technologies Inc. | |
Series | PW | |
Packaging | Tray | |
Part Status | Active | |
Frequency Group | UHF (2 GHz ~ 3 GHz) | |
Frequency (Center/Band) | 2.4GHz | |
Frequency Range | 2.35GHz ~ 2.6GHz | |
Antenna Type | Whip, Straight | |
Number of Bands | 1 | |
VSWR | 1.9 | |
Return Loss | - | |
Gain | 1.6dBi | |
Power - Max | - | |
Features | - | |
Termination | Connector, U.FL | |
Ingress Protection | - | |
Mounting Type | Panel Mount | |
Height (Max) | 4.134" (105.00mm) | |
Applications | - | |
Standard Package | 30 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ANT-2.4-PW-QW-UFL | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ANT-2.4-PW-QW-UFL is in stock for immediate shipping now. We are the distributor of Linx Technologies Inc. all series components. The condition of ANT-2.4-PW-QW-UFL is new and unused, you can buy ANT-2.4-PW-QW-UFL Linx Technologies Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ANT-2.4-PW-QW-UFL.
