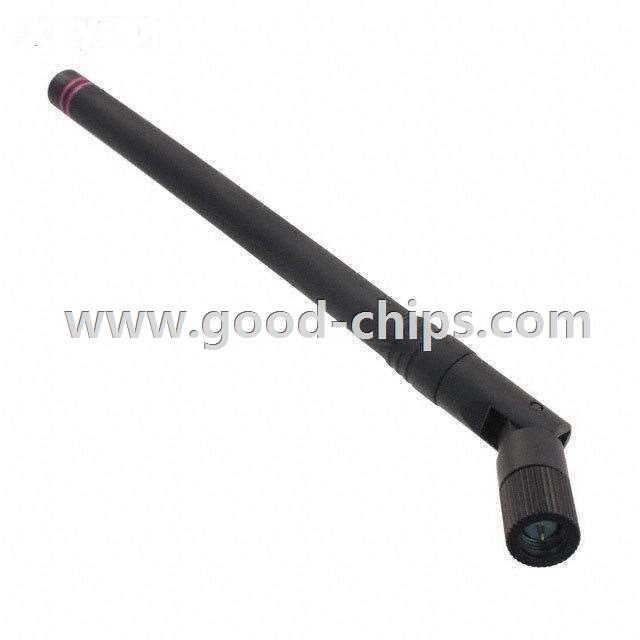

Manufacturer Part Number: | ANT-2.4-CW-HWR-SMA |
---|---|
Manufacturer: | Linx Technologies Inc. |
Product Category: | RF Antennas |
Available Quantity: | 9117 Pieces |
Unit Price: | Quote by Email |
Description: | 2.4GHz Whip, Tilt RF Antenna 2.3GHz ~ 2.6GHz 3.2dBi Connector, SMA Male Connector Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ANT-2.4-CW-HWR-SMA Datasheet |
Internal Part Number | 898-ANT-2.4-CW-HWR-SMA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | FCC and Legal Considerations with Linx Radio Modules Introduction to the RF Environment | |
RoHS Information | RoHS Cert of Compliance | |
Design Resources | IoT Product Selector | |
Online Catalog | Linx Technologies - External | |
Category | RF/IF and RFID | |
Family | RF Antennas | |
Manufacturer | Linx Technologies Inc. | |
Series | HWR | |
Packaging | Tray | |
Part Status | Active | |
Frequency Group | UHF (2 GHz ~ 3 GHz) | |
Frequency (Center/Band) | 2.4GHz | |
Frequency Range | 2.3GHz ~ 2.6GHz | |
Antenna Type | Whip, Tilt | |
Number of Bands | 1 | |
VSWR | 2 | |
Return Loss | - | |
Gain | 3.2dBi | |
Power - Max | - | |
Features | - | |
Termination | Connector, SMA Male | |
Ingress Protection | - | |
Mounting Type | Connector Mount | |
Height (Max) | 5.591" (142.00mm) | |
Applications | - | |
Standard Package | 30 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ANT-2.4-CW-HWR-SMA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ANT-2.4-CW-HWR-SMA is in stock for immediate shipping now. We are the distributor of Linx Technologies Inc. all series components. The condition of ANT-2.4-CW-HWR-SMA is new and unused, you can buy ANT-2.4-CW-HWR-SMA Linx Technologies Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ANT-2.4-CW-HWR-SMA.
