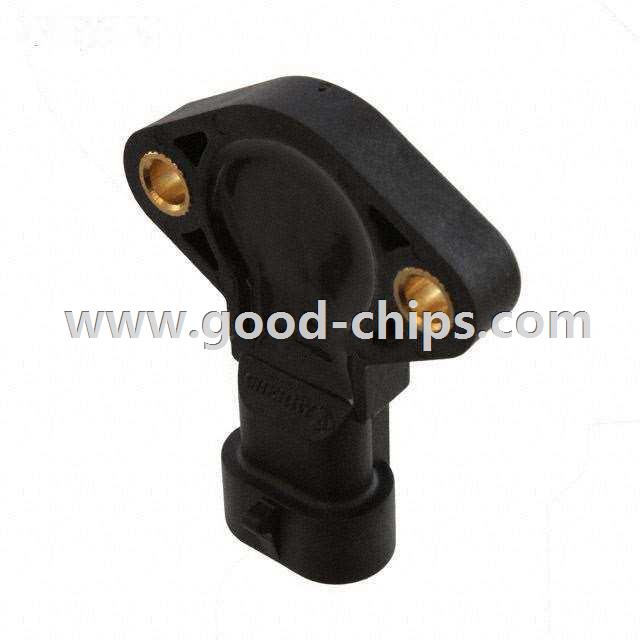

| Manufacturer Part Number: | AN820002 |
|---|---|
| Manufacturer: | Cherry |
| Product Category: | Position Sensors - Angle, Linear Position Measuring |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Hall Effect Sensor Angle External Magnet, Not Included Connector |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AN820002 Datasheet |
| Internal Part Number | 898-AN820002 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | AN8 Series | |
| Category | Sensors, Transducers | |
| Family | Position Sensors - Angle, Linear Position Measuring | |
| Manufacturer | Cherry | |
| Series | AN8 | |
| Part Status | Active | |
| For Measuring | Angle | |
| Technology | Hall Effect | |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous | |
| Linear Range | - | |
| Output | Analog Voltage | |
| Output Signal | Clockwise Increase | |
| Actuator Type | External Magnet, Not Included | |
| Linearity | ±3.5% | |
| Resistance (Ohms) | - | |
| Resistance Tolerance | - | |
| Voltage - Supply | 5V | |
| Mounting Type | Chassis Mount | |
| Termination Style | Connector | |
| Operating Temperature | -40°C ~ 125°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AN820002 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AN820002 is in stock for immediate shipping now. We are the distributor of Cherry all series components. The condition of AN820002 is new and unused, you can buy AN820002 Cherry with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AN820002.
