| Manufacturer Part Number: | AN26210A-PB |
|---|---|
| Manufacturer: | Panasonic Electronic Components |
| Product Category: | RF Amplifiers |
| Available Quantity: | 12010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Amplifier IC Cellular, GPS, W-CDMA 800MHz, 2GHz 12-LGA (3x3) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AN26210A-PB Datasheet |
| Internal Part Number | 898-AN26210A-PB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Category | RF/IF and RFID | |
| Family | RF Amplifiers | |
| Manufacturer | Panasonic Electronic Components | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Frequency | 800MHz, 2GHz | |
| P1dB | -12dBm | |
| Gain | 17dB | |
| Noise Figure | 1.55dB | |
| RF Type | Cellular, GPS, W-CDMA | |
| Voltage - Supply | 2.7 V ~ 2.95 V | |
| Current - Supply | 4.5mA | |
| Test Frequency | 2.1GHz | |

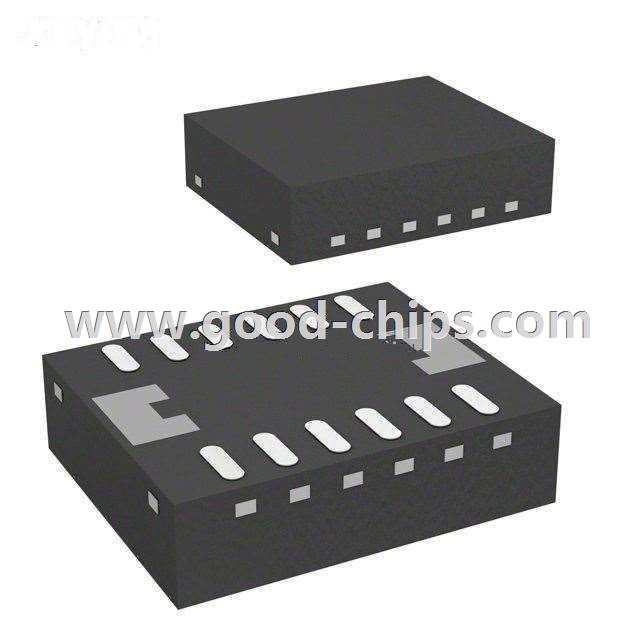

| Package / Case | 12-XLGA | |
| Supplier Device Package | 12-LGA (3x3) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AN26210A-PB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AN26210A-PB is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of AN26210A-PB is new and unused, you can buy AN26210A-PB Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AN26210A-PB.
