Manufacturer Part Number: | AN101101 |
---|---|
Manufacturer: | Cherry |
Product Category: | Position Sensors - Angle, Linear Position Measuring |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

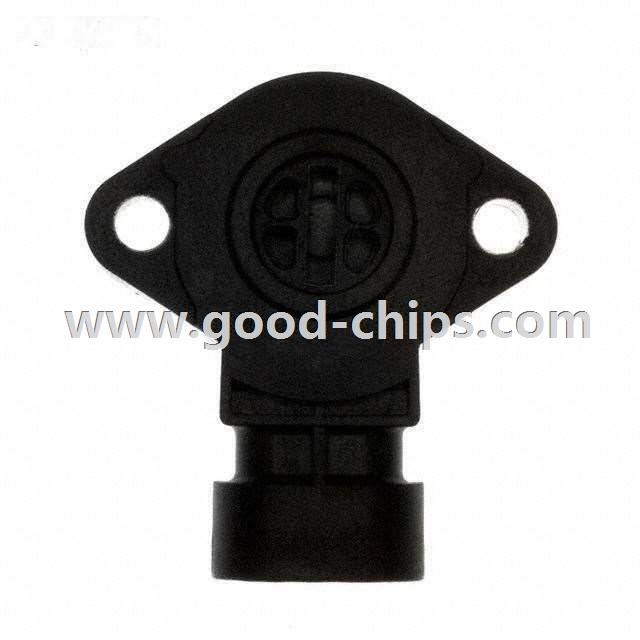

Description: | Magnetoresistive Sensor Rotary Position Slotted Shaft Connector |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AN101101 Datasheet |
Internal Part Number | 898-AN101101 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | Multiple Devices 15/Dec/2010 | |
Online Catalog | AN1 Series | |
Category | Sensors, Transducers | |
Family | Position Sensors - Angle, Linear Position Measuring | |
Manufacturer | Cherry | |
Series | AN1 | |
Part Status | Active | |
For Measuring | Rotary Position | |
Technology | Magnetoresistive | |
Rotation Angle - Electrical, Mechanical | 5° ~ 85°, 0° ~ 120° | |
Linear Range | - | |
Output | Analog Voltage | |
Output Signal | Counterclockwise Increase | |
Actuator Type | Slotted Shaft | |
Linearity | ±2% | |
Resistance (Ohms) | - | |
Resistance Tolerance | - | |
Voltage - Supply | 5V | |
Mounting Type | Chassis Mount | |
Termination Style | Connector | |
Operating Temperature | -40°C ~ 125°C | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AN101101 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AN101101 is in stock for immediate shipping now. We are the distributor of Cherry all series components. The condition of AN101101 is new and unused, you can buy AN101101 Cherry with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AN101101.
