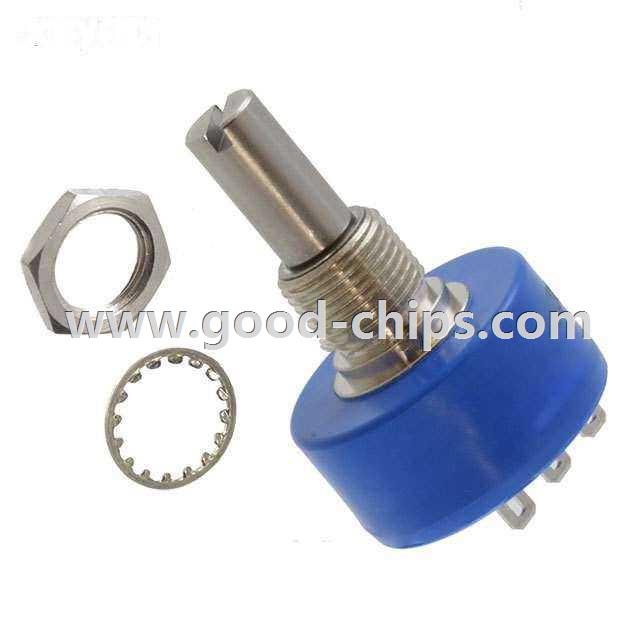

| Manufacturer Part Number: | AMS22B5A1BLASL334S |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Position Sensors - Angle, Linear Position Measuring |
| Available Quantity: | 9022 Pieces |
| Unit Price: | Quote by Email |
| Description: | Hall Effect Sensor Rotary Position Slotted Shaft Solder Lug |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AMS22B5A1BLASL334S Datasheet |
| Internal Part Number | 898-AMS22B5A1BLASL334S | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | AMS22B Single-Turn Magnetic Position Sensor | |
| Video File | Bourns Non-contacting Programmable Position Sensors - Another Geek Moment Product Preview | |
| Featured Product | AMM/AMS Rotary Position Sensors | |
| 3D Model | AMS22BXA1yyySL.stp | |
| Online Catalog | AMS22B Series | |
| Category | Sensors, Transducers | |
| Family | Position Sensors - Angle, Linear Position Measuring | |
| Manufacturer | Bourns Inc. | |
| Series | AMS22B | |
| Part Status | Active | |
| For Measuring | Rotary Position | |
| Technology | Hall Effect | |
| Rotation Angle - Electrical, Mechanical | 10° ~ 340°, Continuous | |
| Linear Range | - | |
| Output | Analog Voltage | |
| Output Signal | Clockwise Increase | |
| Actuator Type | Slotted Shaft | |
| Linearity | ±0.5% | |
| Resistance (Ohms) | - | |
| Resistance Tolerance | - | |
| Voltage - Supply | 5V | |
| Mounting Type | Panel Mount | |
| Termination Style | Solder Lug | |
| Operating Temperature | -40°C ~ 125°C | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AMS22B5A1BLASL334S | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AMS22B5A1BLASL334S is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of AMS22B5A1BLASL334S is new and unused, you can buy AMS22B5A1BLASL334S Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AMS22B5A1BLASL334S.
