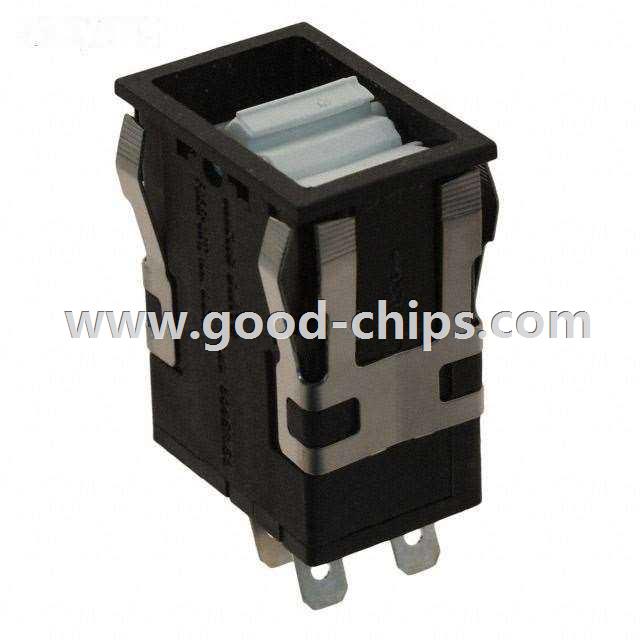

| Manufacturer Part Number: | AML36FBC7AC01 |
|---|---|
| Manufacturer: | Honeywell Sensing and Productivity Solutions |
| Product Category: | Rocker Switches |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |
| Description: | Rocker Switch DPST 15A (AC) 125V Panel Mount, Snap-In |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AML36FBC7AC01 Datasheet |
| Internal Part Number | 898-AML36FBC7AC01 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Electromechanical Switch Technology | |
| Online Catalog | AML36 Series | |
| Category | Switches | |
| Family | Rocker Switches | |
| Manufacturer | Honeywell Sensing and Productivity Solutions | |
| Series | AML36 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | DPST | |
| Switch Function | On-Off | |
| Current Rating | 15A (AC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Actuator Type | Actuator Arm, Cap Required - Illuminated | |
| Color - Actuator/Cap | - | |
| Actuator Marking | Varies by Cap | |
| Illumination Type, Color | Neon, Red | |
| Illumination Voltage (Nominal) | 250 VAC | |
| Mounting Type | Panel Mount, Snap-In | |
| Termination Style | Solder, Quick Connect - 0.187" (4.7mm) | |
| Ingress Protection | - | |
| Features | - | |
| Panel Cutout Dimensions | Rectangular - 28.98mm x 19.05mm | |
| Operating Temperature | - | |
| Mechanical Life | 25,000 Cycles | |
| Electrical Life | 25,000 Cycles | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AML36FBC7AC01 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AML36FBC7AC01 is in stock for immediate shipping now. We are the distributor of Honeywell Sensing and Productivity Solutions all series components. The condition of AML36FBC7AC01 is new and unused, you can buy AML36FBC7AC01 Honeywell Sensing and Productivity Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AML36FBC7AC01.
