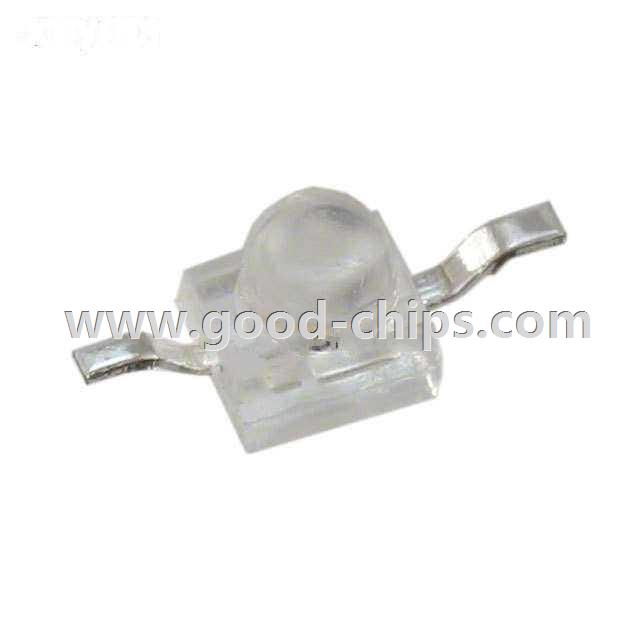

| Manufacturer Part Number: | AM2520SECK09 |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 43215 Pieces |
| Unit Price: | Quote by Email |
| Description: | Orange 601nm LED Indication - Discrete 2.1V 2-SMD, Z-Bend |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AM2520SECK09 Datasheet |
| Internal Part Number | 898-AM2520SECK09 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | AM2520x09.sldprt AM2520x09.pro AM2520x09.igs AM2520x09.stp | |
| Online Catalog | Z-Bend Round with Domed Top 2-SMD Package LEDs | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Kingbright | |
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Color | Orange | |
| Lens Color | Colorless | |
| Lens Transparency | Clear | |
| Millicandela Rating | 1800mcd | |
| Lens Style/Size | Round with Domed Top, 1.90mm | |
| Voltage - Forward (Vf) (Typ) | 2.1V | |
| Current - Test | 20mA | |
| Viewing Angle | 20° | |
| Mounting Type | Surface Mount | |
| Wavelength - Dominant | 601nm | |
| Wavelength - Peak | 610nm | |
| Features | - | |
| Package / Case | 2-SMD, Z-Bend | |
| Supplier Device Package | SMD | |
| Size / Dimension | 2.50mm L x 2.00mm W | |
| Height (Max) | 2.90mm | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AM2520SECK09 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AM2520SECK09 is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of AM2520SECK09 is new and unused, you can buy AM2520SECK09 Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AM2520SECK09.
