Manufacturer Part Number: | AL5811EV2 |
---|---|
Manufacturer: | Diodes Incorporated |
Product Category: | Evaluation Boards - LED Drivers |
Available Quantity: | 9012 Pieces |
Unit Price: | Quote by Email |

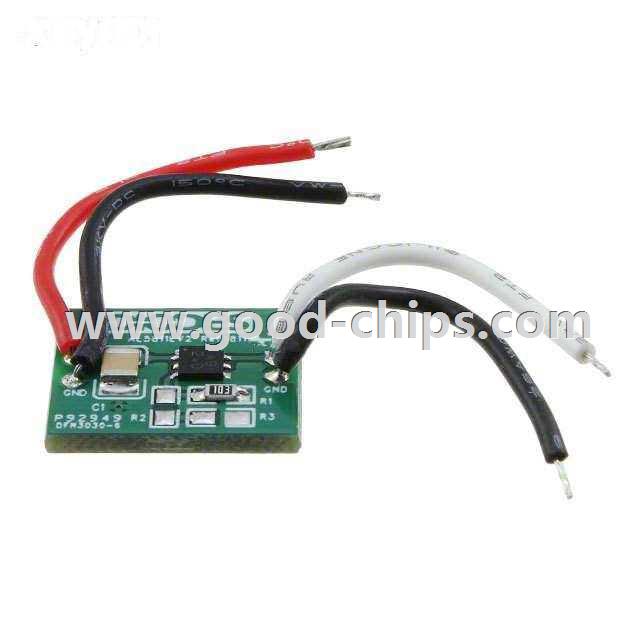

Description: | AL5811 1, Non-Isolated Output LED Driver Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AL5811EV2 Datasheet |
Internal Part Number | 898-AL5811EV2 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector Lighting Product Selector | |
Online Catalog | AL5811 Evaluation Boards | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - LED Drivers | |
Manufacturer | Diodes Incorporated | |
Series | - | |
Part Status | Active | |
Current - Output / Channel | 75mA | |
Outputs and Type | 1, Non-Isolated | |
Voltage - Output | 1 V ~ 60 V | |
Features | - | |
Voltage - Input | 3.5 V ~ 60 V | |
Supplied Contents | Board | |
Utilized IC / Part | AL5811 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AL5811EV2 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AL5811EV2 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of AL5811EV2 is new and unused, you can buy AL5811EV2 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AL5811EV2.
