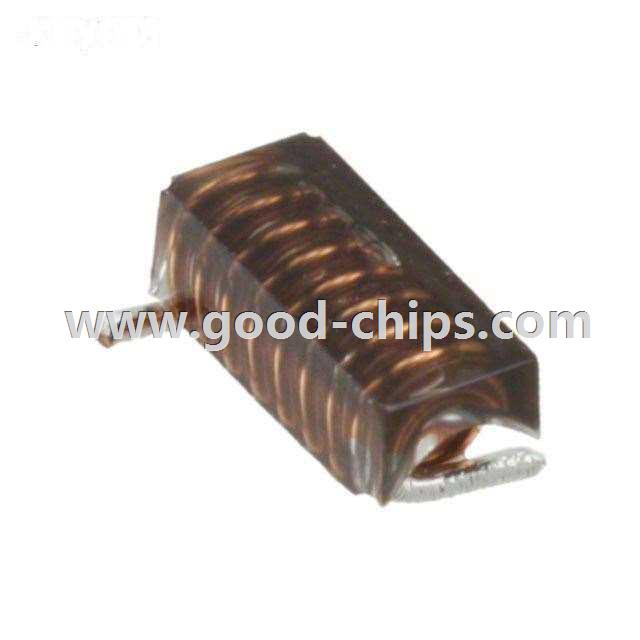

| Manufacturer Part Number: | AL12B35N5JTR |
|---|---|
| Manufacturer: | AVX Corporation |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 35.5nH Unshielded Wirewound Inductor 4A 6.8 mOhm Max Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AL12B35N5JTR Datasheet |
| Internal Part Number | 898-AL12B35N5JTR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Air Core Inductors | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | AL Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | AVX Corporation | |
| Series | AL | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Air | |
| Inductance | 35.5nH | |
| Tolerance | ±5% | |
| Current Rating | 4A | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 6.8 mOhm Max | |
| Q @ Freq | 112 @ 150MHz | |
| Frequency - Self Resonant | 1.5GHz | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Frequency - Test | 150MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.270" L x 0.120" W (6.86mm x 3.05mm) | |
| Height - Seated (Max) | 0.125" (3.18mm) | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AL12B35N5JTR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AL12B35N5JTR is in stock for immediate shipping now. We are the distributor of AVX Corporation all series components. The condition of AL12B35N5JTR is new and unused, you can buy AL12B35N5JTR AVX Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AL12B35N5JTR.
