Manufacturer Part Number: | AIUR-16-470K |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Fixed Inductors |
Available Quantity: | 9990 Pieces |
Unit Price: | Quote by Email |

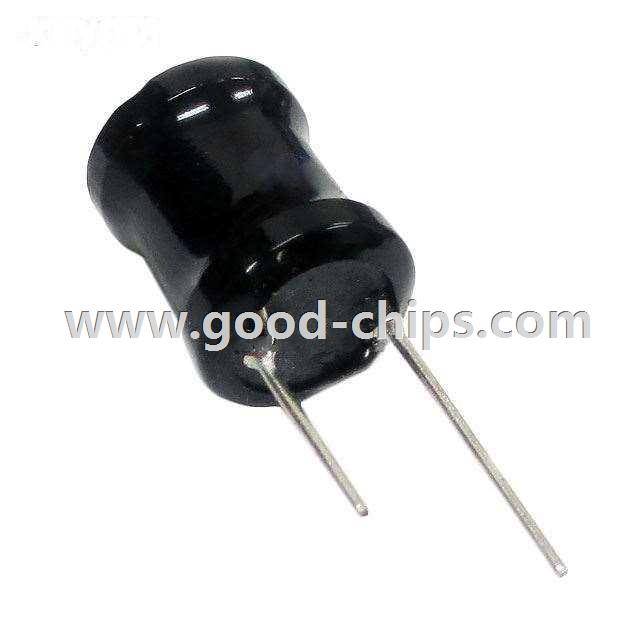

Description: | 47µH Unshielded Wirewound Inductor 800mA 120 mOhm Max Radial |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AIUR-16-470K Datasheet |
Internal Part Number | 898-AIUR-16-470K | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | AIUR-16.pdf AIUR-16.stp | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Abracon LLC | |
Series | AIUR-16 | |
Packaging | Bulk | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 47µH | |
Tolerance | ±10% | |
Current Rating | 800mA | |
Current - Saturation | 760mA | |
Shielding | Unshielded | |
DC Resistance (DCR) | 120 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -25°C ~ 85°C | |
Frequency - Test | 10kHz | |
Mounting Type | Through Hole | |
Package / Case | Radial | |
Size / Dimension | 0.276" Dia (7.00mm) | |
Height - Seated (Max) | 0.374" (9.50mm) | |
Standard Package | 200 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AIUR-16-470K | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AIUR-16-470K is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of AIUR-16-470K is new and unused, you can buy AIUR-16-470K Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AIUR-16-470K.
