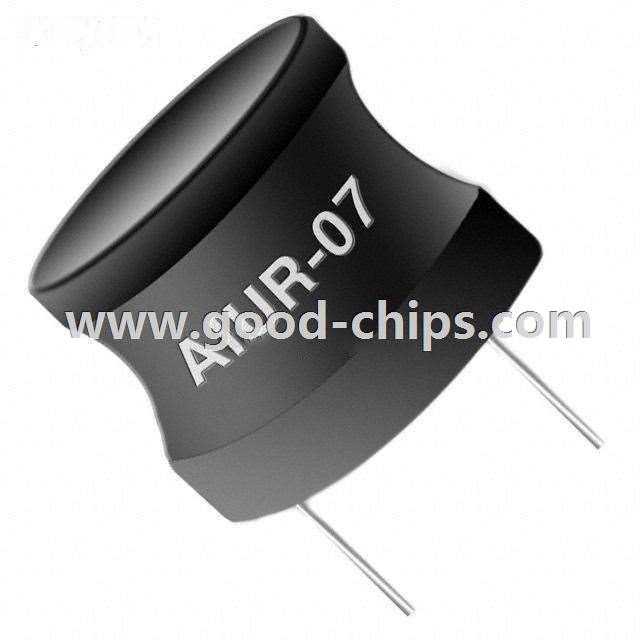

Manufacturer Part Number: | AIUR-07-391K |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Fixed Inductors |
Available Quantity: | 10000 Pieces |
Unit Price: | Quote by Email |
Description: | 390µH Unshielded Wirewound Inductor 200mA 2.6 Ohm Max Radial |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AIUR-07-391K Datasheet |
Internal Part Number | 898-AIUR-07-391K | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | AIUR-07.pdf AIUR-07.stp | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Abracon LLC | |
Series | AIUR-07 | |
Packaging | Bulk | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 390µH | |
Tolerance | ±10% | |
Current Rating | 200mA | |
Current - Saturation | 200mA | |
Shielding | Unshielded | |
DC Resistance (DCR) | 2.6 Ohm Max | |
Q @ Freq | 56 @ 1kHz | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -55°C ~ 85°C | |
Frequency - Test | 1kHz | |
Mounting Type | Through Hole | |
Package / Case | Radial | |
Size / Dimension | 0.236" Dia (6.00mm) | |
Height - Seated (Max) | 0.201" (5.10mm) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AIUR-07-391K | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AIUR-07-391K is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of AIUR-07-391K is new and unused, you can buy AIUR-07-391K Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AIUR-07-391K.
