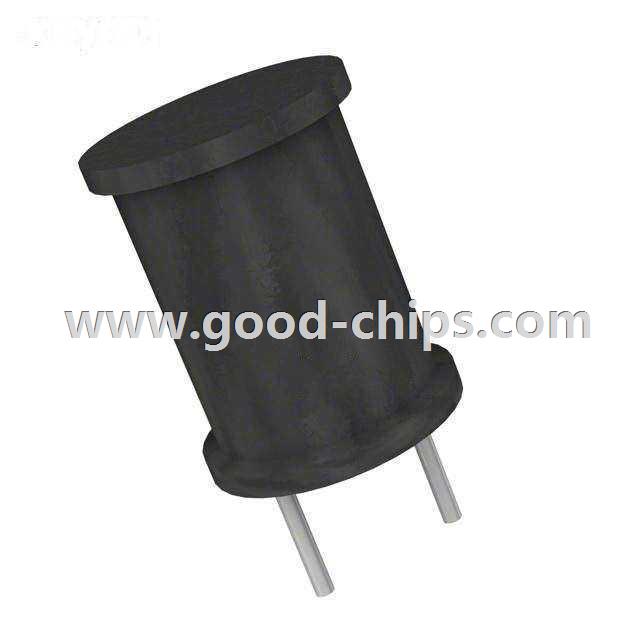

Manufacturer Part Number: | AIUR-04-103J |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Fixed Inductors |
Available Quantity: | 10048 Pieces |
Unit Price: | Quote by Email |
Description: | 10mH Unshielded Wirewound Inductor 40mA 40 Ohm Max Radial |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AIUR-04-103J Datasheet |
Internal Part Number | 898-AIUR-04-103J | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | AIUR-04.pdf AIUR-04.stp | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Abracon LLC | |
Series | AIUR-04 | |
Packaging | Bulk | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 10mH | |
Tolerance | ±5% | |
Current Rating | 40mA | |
Current - Saturation | 40mA | |
Shielding | Unshielded | |
DC Resistance (DCR) | 40 Ohm Max | |
Q @ Freq | 40 @ 79.6kHz | |
Frequency - Self Resonant | 400kHz | |
Ratings | - | |
Operating Temperature | -25°C ~ 85°C | |
Frequency - Test | 79.6kHz | |
Mounting Type | Through Hole | |
Package / Case | Radial | |
Size / Dimension | 0.335" Dia (8.50mm) | |
Height - Seated (Max) | 0.440" (11.20mm) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AIUR-04-103J | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AIUR-04-103J is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of AIUR-04-103J is new and unused, you can buy AIUR-04-103J Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AIUR-04-103J.
