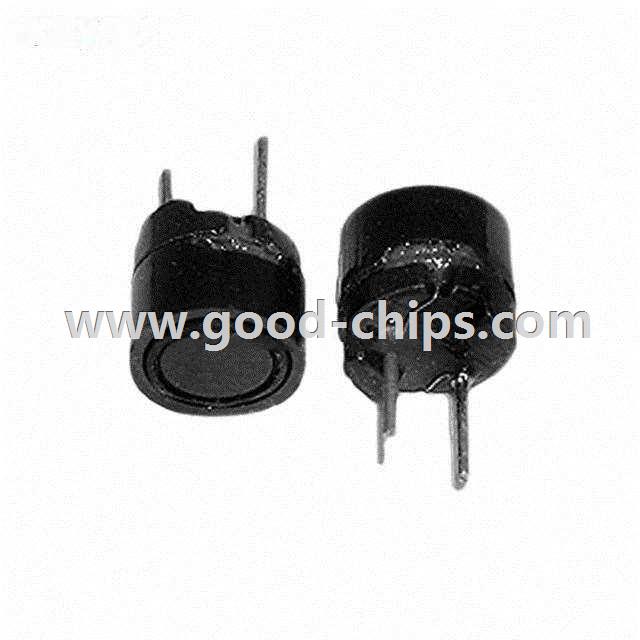

| Manufacturer Part Number: | AISR-01-683J |
|---|---|
| Manufacturer: | Abracon LLC |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 68mH Shielded Wirewound Inductor 11mA 67 Ohm Max Radial |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AISR-01-683J Datasheet |
| Internal Part Number | 898-AISR-01-683J | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | AISR-01.pdf AISR-01.stp | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Abracon LLC | |
| Series | AISR-01 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 68mH | |
| Tolerance | ±5% | |
| Current Rating | 11mA | |
| Current - Saturation | - | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 67 Ohm Max | |
| Q @ Freq | 100 @ 50kHz | |
| Frequency - Self Resonant | 90kHz | |
| Ratings | - | |
| Operating Temperature | -25°C ~ 85°C | |
| Frequency - Test | 1kHz | |
| Mounting Type | Through Hole | |
| Package / Case | Radial | |
| Size / Dimension | 0.425" Dia (10.80mm) | |
| Height - Seated (Max) | 0.551" (14.00mm) | |
| Standard Package | 400 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AISR-01-683J | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AISR-01-683J is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of AISR-01-683J is new and unused, you can buy AISR-01-683J Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AISR-01-683J.
