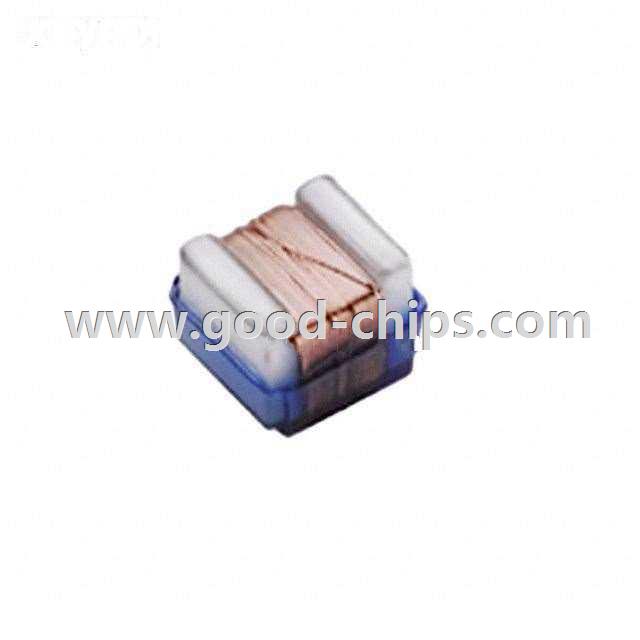

Manufacturer Part Number: | AISC-1206-39NJ-T |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 39nH Unshielded Wirewound Inductor 1A 120 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AISC-1206-39NJ-T Datasheet |
Internal Part Number | 898-AISC-1206-39NJ-T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | AISC-1206.pdf AISC-1206.stp | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Abracon LLC | |
Series | AISC-1206 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ceramic | |
Inductance | 39nH | |
Tolerance | ±5% | |
Current Rating | 1A | |
Current - Saturation | - | |
Shielding | Unshielded | |
DC Resistance (DCR) | 120 mOhm Max | |
Q @ Freq | 50 @ 300MHz | |
Frequency - Self Resonant | 1.8GHz | |
Ratings | - | |
Operating Temperature | -40°C ~ 125°C | |
Frequency - Test | 100MHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.140" L x 0.085" W (3.56mm x 2.16mm) | |
Height - Seated (Max) | 0.060" (1.52mm) | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AISC-1206-39NJ-T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AISC-1206-39NJ-T is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of AISC-1206-39NJ-T is new and unused, you can buy AISC-1206-39NJ-T Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AISC-1206-39NJ-T.
