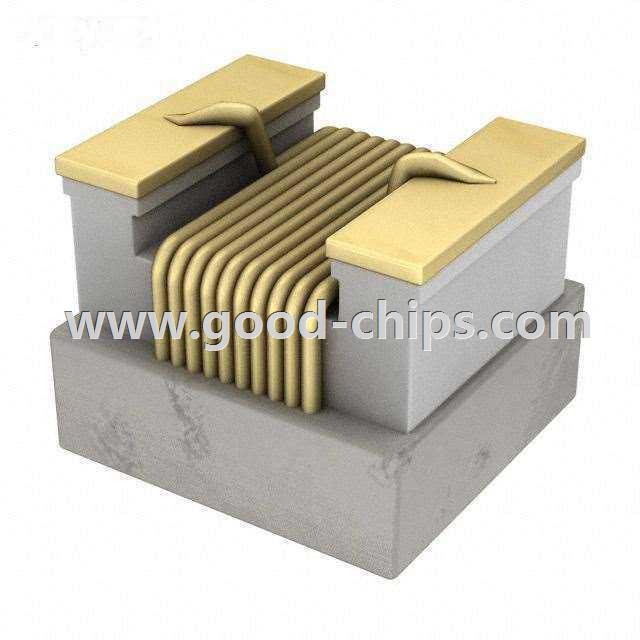

| Manufacturer Part Number: | AISC-1008F-2R7J-T |
|---|---|
| Manufacturer: | Abracon LLC |
| Product Category: | Fixed Inductors |
| Available Quantity: | 12119 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2.7µH Unshielded Wirewound Inductor 490mA 1.3 Ohm Max 1008 (2520 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AISC-1008F-2R7J-T Datasheet |
| Internal Part Number | 898-AISC-1008F-2R7J-T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | AISC-1008F.pdf AISC-1008F.stp | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | AISC Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Abracon LLC | |
| Series | AISC-1008F | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 2.7µH | |
| Tolerance | ±5% | |
| Current Rating | 490mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 1.3 Ohm Max | |
| Q @ Freq | 25 @ 50MHz | |
| Frequency - Self Resonant | 120MHz | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Frequency - Test | 7.9MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 1008 (2520 Metric) | |
| Size / Dimension | 0.115" L x 0.110" W (2.92mm x 2.79mm) | |
| Height - Seated (Max) | 0.090" (2.29mm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AISC-1008F-2R7J-T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AISC-1008F-2R7J-T is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of AISC-1008F-2R7J-T is new and unused, you can buy AISC-1008F-2R7J-T Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AISC-1008F-2R7J-T.
