Manufacturer Part Number: | AIRD-06-181K |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Fixed Inductors |
Available Quantity: | 9131 Pieces |
Unit Price: | Quote by Email |

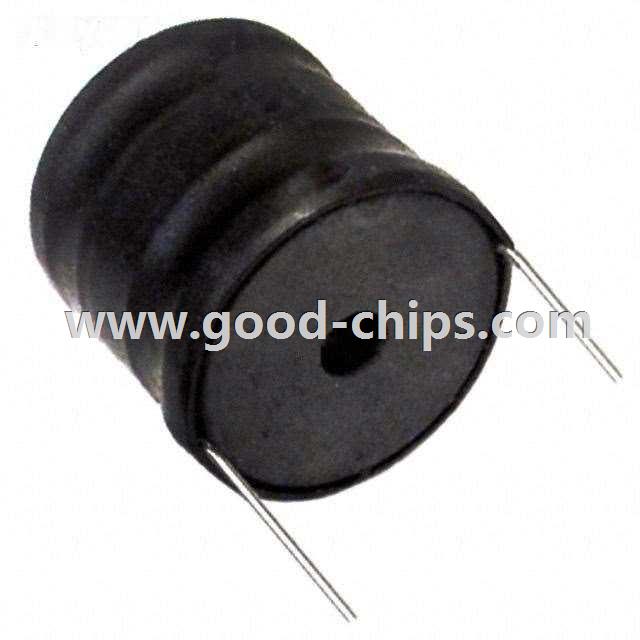

Description: | 180µH Unshielded Wirewound Inductor 4A 110 mOhm Max Radial |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AIRD-06-181K Datasheet |
Internal Part Number | 898-AIRD-06-181K | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | AIRD-06.pdf AIRD-06.stp | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Abracon LLC | |
Series | AIRD-06 | |
Packaging | Bulk | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 180µH | |
Tolerance | ±10% | |
Current Rating | 4A | |
Current - Saturation | 7.8A | |
Shielding | Unshielded | |
DC Resistance (DCR) | 110 mOhm Max | |
Q @ Freq | 15 @ 50kHz | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -25°C ~ 85°C | |
Frequency - Test | 1kHz | |
Mounting Type | Through Hole | |
Package / Case | Radial | |
Size / Dimension | 0.827" Dia (21.00mm) | |
Height - Seated (Max) | 0.827" (21.00mm) | |
Standard Package | 200 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AIRD-06-181K | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AIRD-06-181K is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of AIRD-06-181K is new and unused, you can buy AIRD-06-181K Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AIRD-06-181K.
