Manufacturer Part Number: | AIML-1008HC-4R7M-T |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 4.7µH Shielded Multilayer Inductor 1.3A 120 mOhm 1008 (2520 Metric) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AIML-1008HC-4R7M-T Datasheet |
Internal Part Number | 898-AIML-1008HC-4R7M-T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | AIML-1008HC.pdf AIML-1008HC.stp | |
Online Catalog | AIML Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Abracon LLC | |
Series | AIML-1008HC | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Multilayer | |
Material - Core | Ferrite | |
Inductance | 4.7µH | |
Tolerance | ±20% | |
Current Rating | 1.3A | |
Current - Saturation | - | |
Shielding | Shielded | |
DC Resistance (DCR) | 120 mOhm | |
Q @ Freq | - | |
Frequency - Self Resonant | 20MHz | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Frequency - Test | 1MHz | |
Mounting Type | Surface Mount | |

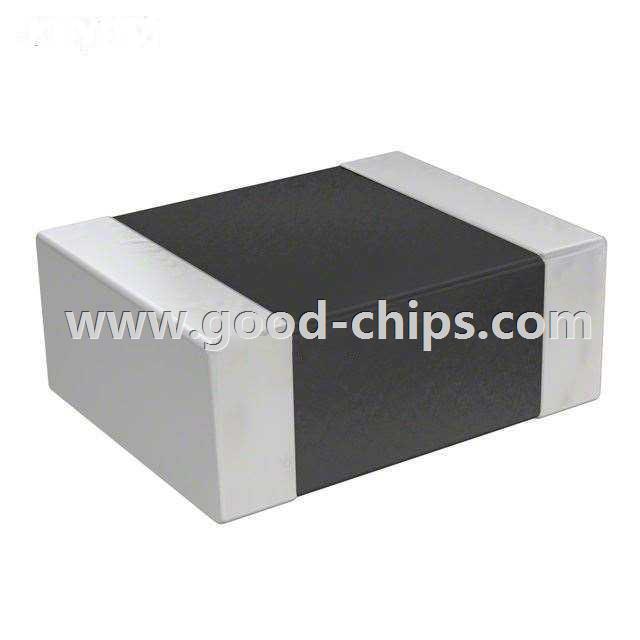

Package / Case | 1008 (2520 Metric) | |
Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | |
Height - Seated (Max) | 0.039" (1.00mm) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AIML-1008HC-4R7M-T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AIML-1008HC-4R7M-T is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of AIML-1008HC-4R7M-T is new and unused, you can buy AIML-1008HC-4R7M-T Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AIML-1008HC-4R7M-T.
