| Manufacturer Part Number: | AIML-0805HC-1R0M-T |
|---|---|
| Manufacturer: | Abracon LLC |
| Product Category: | Fixed Inductors |
| Available Quantity: | 11920 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1µH Shielded Multilayer Inductor 1.4A 150 mOhm 0805 (2012 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AIML-0805HC-1R0M-T Datasheet |
| Internal Part Number | 898-AIML-0805HC-1R0M-T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | AIML-0805HC.pdf AIML-0805HC.stp | |
| Online Catalog | AIML Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Abracon LLC | |
| Series | AIML-0805HC | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Type | Multilayer | |
| Material - Core | Ferrite | |
| Inductance | 1µH | |
| Tolerance | ±20% | |
| Current Rating | 1.4A | |
| Current - Saturation | 400mA | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 150 mOhm | |
| Q @ Freq | - | |
| Frequency - Self Resonant | 75MHz | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Frequency - Test | 1MHz | |
| Mounting Type | Surface Mount | |

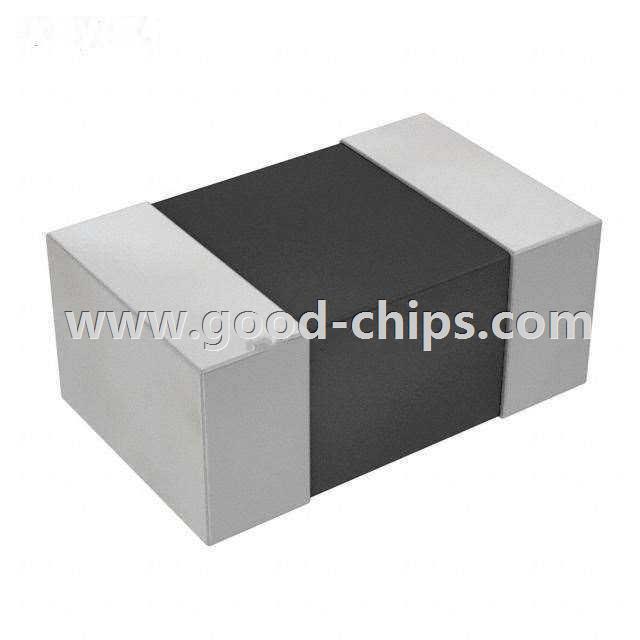

| Package / Case | 0805 (2012 Metric) | |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | |
| Height - Seated (Max) | 0.038" (0.95mm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AIML-0805HC-1R0M-T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AIML-0805HC-1R0M-T is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of AIML-0805HC-1R0M-T is new and unused, you can buy AIML-0805HC-1R0M-T Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AIML-0805HC-1R0M-T.
