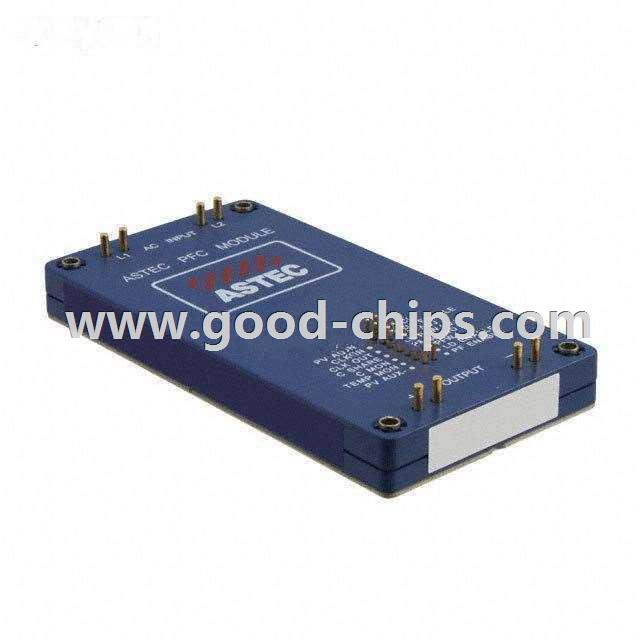

| Manufacturer Part Number: | AIF04ZPFC-01NTL |
|---|---|
| Manufacturer: | Artesyn Embedded Technologies |
| Product Category: | AC DC Converters |
| Available Quantity: | 9200 Pieces |
| Unit Price: | Quote by Email |
| Description: | MODULE PFC AC 1600W 380VDC OUT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AIF04ZPFC-01NTL Datasheet |
| Internal Part Number | 898-AIF04ZPFC-01NTL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | AIF High Voltage Full Brick DC/DC Converters | |
| PCN Packaging | CSA Marking 20/Sep/2013 | |
| Online Catalog | AIF Series | |
| Category | Power Supplies - Board Mount | |
| Family | AC DC Converters | |
| Manufacturer | Artesyn Embedded Technologies | |
| Series | AIF | |
| Part Status | Active | |
| Number of Outputs | 1 | |
| Voltage - Input | 85 ~ 264 VAC | |
| Voltage - Output 1 | 380V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 4.2A | |
| Power (Watts) | 1600W | |
| Power Supply Type | Switching (Closed Frame) | |
| Applications | ITE (Commercial) | |
| Features | OTP, OVP | |
| Operating Temperature | -20°C ~ 100°C | |
| Efficiency | 95% | |
| Mounting Type | Through Hole | |
| Size / Dimension | 4.60" L x 2.40" W x 0.55" H (116.8mm x 61.0mm x 14.0mm) | |
| Power (Watts) - Max | 1596W | |
| Line Regulation | - | |
| Load Regulation | - | |
| Approvals | cUL, TUV, UL | |
| Weight | 0.001 KG | |
| Standard Package | 64 | |
| Application | Email for details | |
| Replacement Part | AIF04ZPFC-01NTL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AIF04ZPFC-01NTL is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of AIF04ZPFC-01NTL is new and unused, you can buy AIF04ZPFC-01NTL Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AIF04ZPFC-01NTL.
