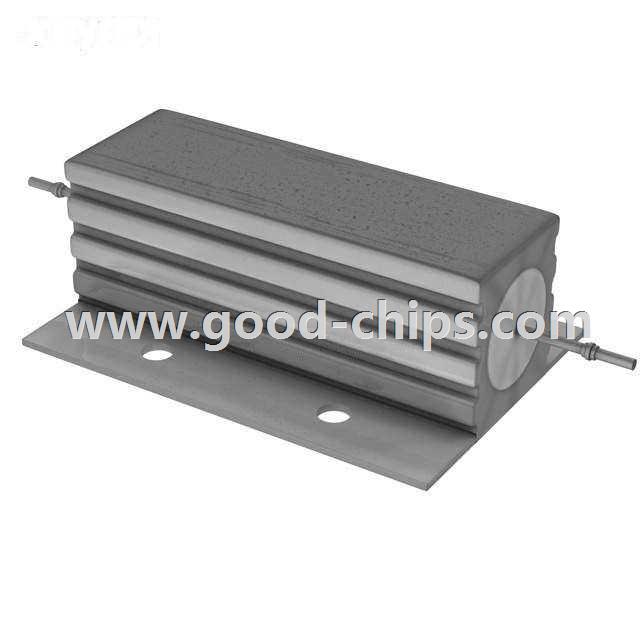

| Manufacturer Part Number: | AHA80AFB-100R |
|---|---|
| Manufacturer: | Yageo |
| Product Category: | Chassis Mount Resistors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES CHAS MNT 100 OHM 1% 80W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AHA80AFB-100R Datasheet |
| Internal Part Number | 898-AHA80AFB-100R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | AHA/AHP Series Wirewound Resistors | |
| Category | Resistors | |
| Family | Chassis Mount Resistors | |
| Manufacturer | Yageo | |
| Series | AHA | |
| Packaging | Bulk | |
| Part Status | Active | |
| Resistance (Ohms) | 100 | |
| Tolerance | ±1% | |
| Power (Watts) | 80W | |
| Composition | Wirewound | |
| Temperature Coefficient | ±200ppm/°C | |
| Operating Temperature | -55°C ~ 250°C | |
| Features | - | |
| Coating, Housing Type | Aluminum | |
| Mounting Feature | Flanges | |
| Size / Dimension | 2.598" L x 1.850" W (66.00mm x 47.00mm) | |
| Height | 1.024" (26.00mm) | |
| Lead Style | Solder Lugs | |
| Package / Case | Axial, Box | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AHA80AFB-100R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AHA80AFB-100R is in stock for immediate shipping now. We are the distributor of Yageo all series components. The condition of AHA80AFB-100R is new and unused, you can buy AHA80AFB-100R Yageo with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AHA80AFB-100R.
