Manufacturer Part Number: | AH9279Z4-G1 |
---|---|
Manufacturer: | Diodes Incorporated |
Product Category: | PMIC - Motor Drivers, Controllers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Motor Driver CMOS, Power MOSFET On/Off TO-94 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AH9279Z4-G1 Datasheet |
Internal Part Number | 898-AH9279Z4-G1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | RoHS Cert of Compliance | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Motor Drivers, Controllers | |
Manufacturer | Diodes Incorporated | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Motor Type - Stepper | - | |
Motor Type - AC, DC | Brushless DC (BLDC) | |
Function | Driver - Fully Integrated, Control and Power Stage | |
Output Configuration | Low Side (2) | |
Interface | On/Off | |
Technology | CMOS, Power MOSFET | |
Step Resolution | - | |
Applications | Fan Motor Driver | |
Current - Output | 500mA | |
Voltage - Supply | 3.5 V ~ 16 V | |
Voltage - Load | 3.5 V ~ 16 V | |
Operating Temperature | -20°C ~ 125°C (TA) | |
Mounting Type | Through Hole | |
Package / Case | 4-SIP | |

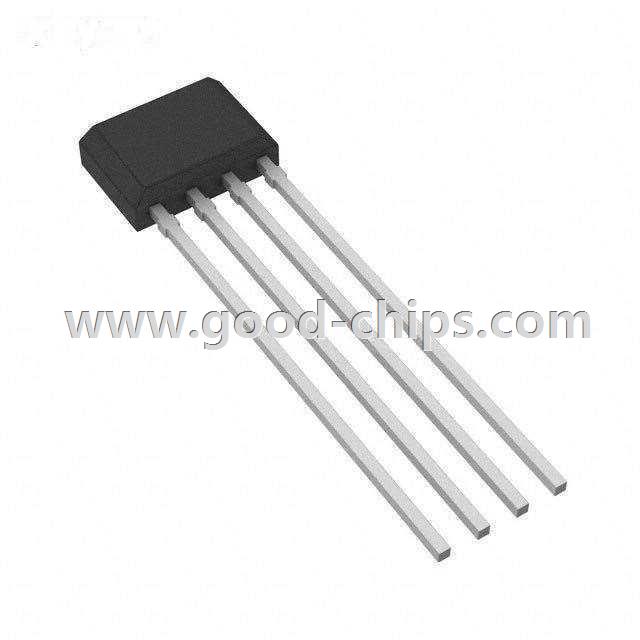

Supplier Device Package | TO-94 | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AH9279Z4-G1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AH9279Z4-G1 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of AH9279Z4-G1 is new and unused, you can buy AH9279Z4-G1 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AH9279Z4-G1.
