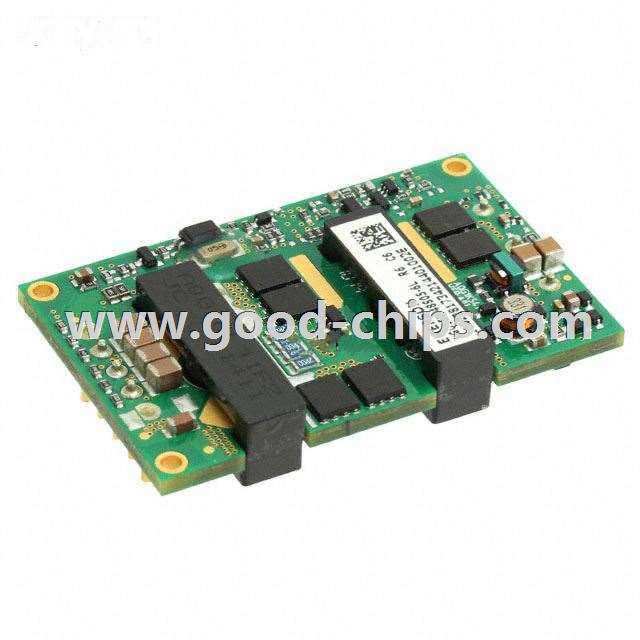

| Manufacturer Part Number: | AGQ150-48S05-6L |
|---|---|
| Manufacturer: | Artesyn Embedded Technologies |
| Product Category: | DC DC Converters |
| Available Quantity: | 9057 Pieces |
| Unit Price: | Quote by Email |
| Description: | DC/DC CONVERTER 5V 150W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AGQ150-48S05-6L Datasheet |
| Internal Part Number | 898-AGQ150-48S05-6L | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | AGQ100/150/200 Series, Quarter-Brick DC/DC Converter | |
| Online Catalog | AGQ150 Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Artesyn Embedded Technologies | |
| Series | AGQ150 | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Isolated Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 36V | |
| Voltage - Input (Max) | 75V | |
| Voltage - Output 1 | 5V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 30A | |
| Power (Watts) - Manufacture Series | 150W | |
| Voltage - Isolation | 2.25kV (2250V) | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP Module, 1/4 Brick | |
| Size / Dimension | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 92.7% | |
| Power (Watts) - Max | 150W | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AGQ150-48S05-6L | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AGQ150-48S05-6L is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of AGQ150-48S05-6L is new and unused, you can buy AGQ150-48S05-6L Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AGQ150-48S05-6L.
