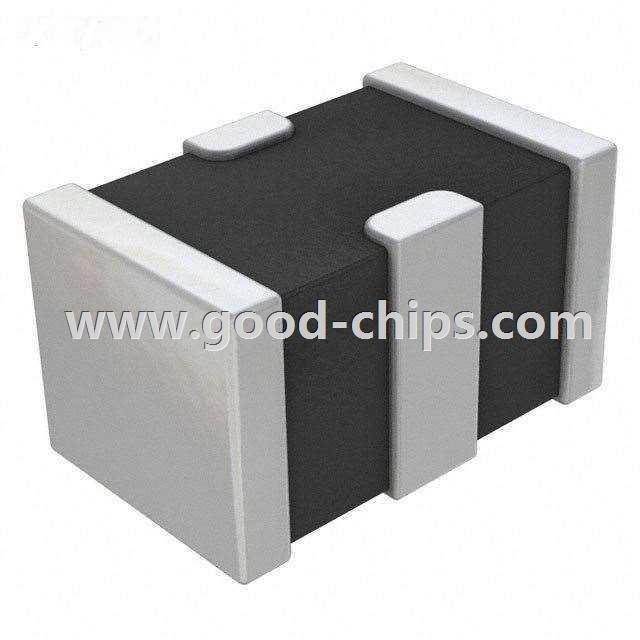

| Manufacturer Part Number: | AEMIF-0603-401M-16-T |
|---|---|
| Manufacturer: | Abracon LLC |
| Product Category: | EMI/RFI Filters (LC, RC Networks) |
| Available Quantity: | 13010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RC (Pi) EMI Filter 2nd Order Low Pass 1 Channel R = 0.8 Ohms 300mA 0603 (1608 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AEMIF-0603-401M-16-T Datasheet |
| Internal Part Number | 898-AEMIF-0603-401M-16-T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Filters | |
| Family | EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | Abracon LLC | |
| Series | AEMIF-0603 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Low Pass | |
| Filter Order | 2nd | |
| Technology | RC (Pi) | |
| Number of Channels | 1 | |
| Center / Cutoff Frequency | 400MHz (Cutoff) | |
| Attenuation Value | 20dB @ 800MHz ~ 2GHz | |
| Resistance - Channel (Ohms) | 0.8 | |
| Current | 300mA | |
| Values | R = 0.8 Ohms | |
| ESD Protection | No | |
| Operating Temperature | -40°C ~ 85°C | |
| Applications | General Purpose | |
| Voltage - Rated | 16V | |
| Mounting Type | Surface Mount | |
| Package / Case | 0603 (1608 Metric) | |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | |
| Height | 0.031" (0.80mm) | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AEMIF-0603-401M-16-T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AEMIF-0603-401M-16-T is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of AEMIF-0603-401M-16-T is new and unused, you can buy AEMIF-0603-401M-16-T Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AEMIF-0603-401M-16-T.
