| Manufacturer Part Number: | AEE03A36-L |
|---|---|
| Manufacturer: | Artesyn Embedded Technologies |
| Product Category: | DC DC Converters |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONVERT DC/DC 18-75VIN 5V@3A |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AEE03A36-L Datasheet |
| Internal Part Number | 898-AEE03A36-L | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Packaging | CSA Marking 20/Sep/2013 | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Artesyn Embedded Technologies | |
| Series | AEE03 | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Type | Isolated Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 18V | |
| Voltage - Input (Max) | 75V | |
| Voltage - Output 1 | 5V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 3A | |
| Power (Watts) - Manufacture Series | 15W | |
| Voltage - Isolation | 1.5kV (1500V) | |
| Applications | ITE (Commercial) | |
| Features | SCP | |
| Mounting Type | Through Hole | |

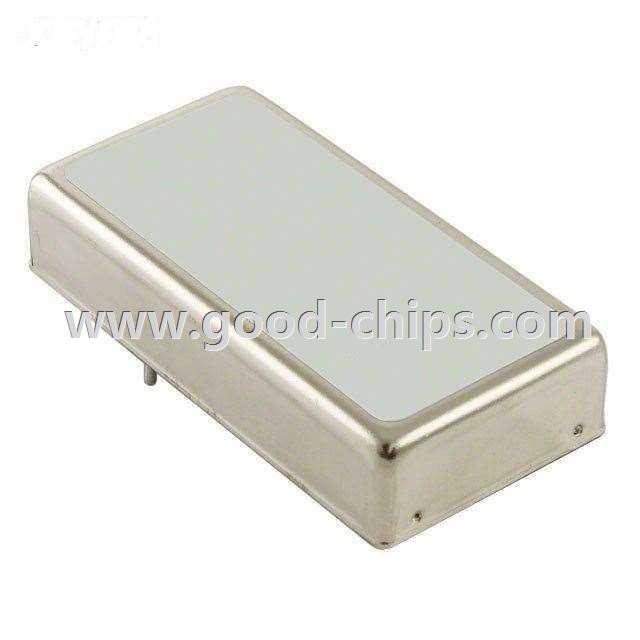

| Package / Case | 5-DIP Module | |
| Size / Dimension | 2.00" L x 1.00" W x 0.44" H (50.8mm x 25.4mm x 11.3mm) | |
| Operating Temperature | -40°C ~ 71°C | |
| Efficiency | 84% | |
| Power (Watts) - Max | 15W | |
| Standard Package | 120 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AEE03A36-L | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AEE03A36-L is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of AEE03A36-L is new and unused, you can buy AEE03A36-L Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AEE03A36-L.
