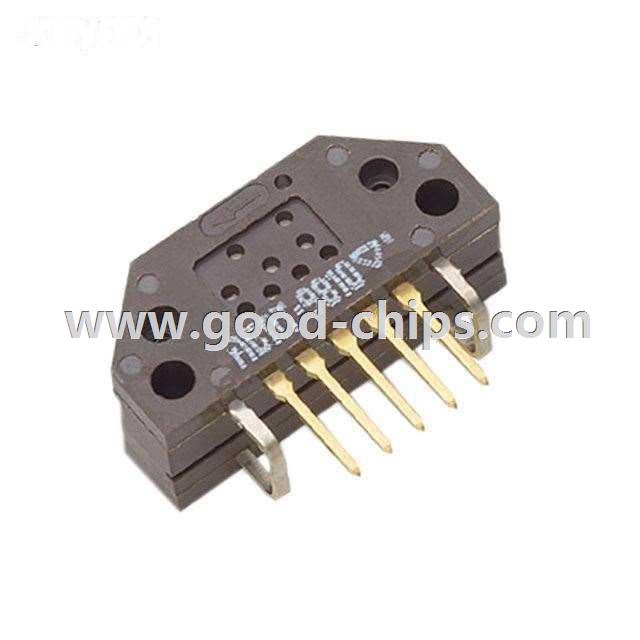

| Manufacturer Part Number: | AEDT-9810-T00 |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | Encoders |
| Available Quantity: | 9110 Pieces |
| Unit Price: | Quote by Email |
| Description: | ENCODER 3CH COMM HI TEMP 2000CPR |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AEDT-9810-T00 Datasheet |
| Internal Part Number | 898-AEDT-9810-T00 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Avago AEDT 981x Encoder Series | |
| Category | Sensors, Transducers | |
| Family | Encoders | |
| Manufacturer | Broadcom Limited | |
| Series | - | |
| Part Status | Active | |
| Encoder Type | Optical | |
| Output Type | Quadrature with Index (Incremental) | |
| Pulses per Revolution | 2000 | |
| Voltage - Supply | 4.5 V ~ 5.5 V | |
| Actuator Type | Codewheel Not Included | |
| Detent | No | |
| Built in Switch | No | |
| Mounting Type | Chassis Mount | |
| Orientation | User Selectable | |
| Termination Style | Terminal Pins | |
| Rotational Life (Cycles Min) | - | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AEDT-9810-T00 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AEDT-9810-T00 is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of AEDT-9810-T00 is new and unused, you can buy AEDT-9810-T00 Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AEDT-9810-T00.
