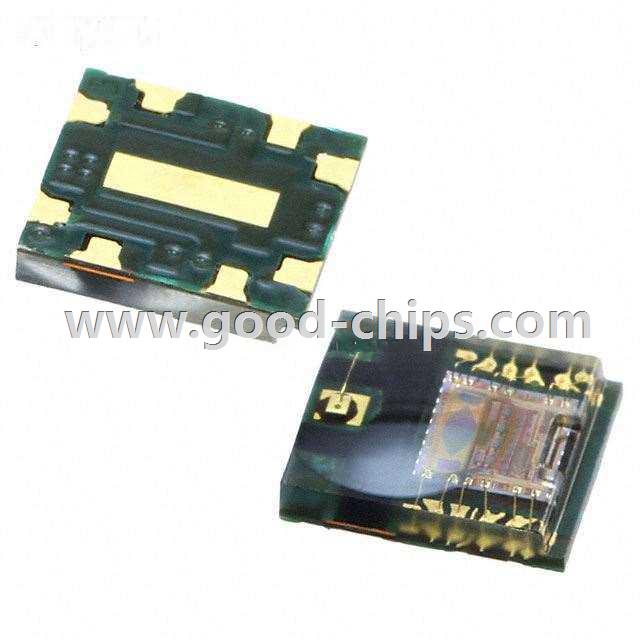

Manufacturer Part Number: | AEDR-8723-102 |
---|---|
Manufacturer: | Broadcom Limited |
Product Category: | Encoders |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | ENCODER REFL 3CH 9PIN SMD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AEDR-8723-102 Datasheet |
Internal Part Number | 898-AEDR-8723-102 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | AEDR-87xx Encoders | |
Online Catalog | AEDR-872x | |
Category | Sensors, Transducers | |
Family | Encoders | |
Manufacturer | Broadcom Limited | |
Series | - | |
Part Status | Active | |
Encoder Type | Optical | |
Output Type | Differential Voltage | |
Pulses per Revolution | - | |
Voltage - Supply | 4.5 V ~ 5.5 V | |
Actuator Type | Codewheel Not Included | |
Detent | No | |
Built in Switch | No | |
Mounting Type | Surface Mount | |
Orientation | - | |
Termination Style | Surface Mount (SMD,SMT) | |
Rotational Life (Cycles Min) | - | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AEDR-8723-102 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AEDR-8723-102 is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of AEDR-8723-102 is new and unused, you can buy AEDR-8723-102 Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AEDR-8723-102.
