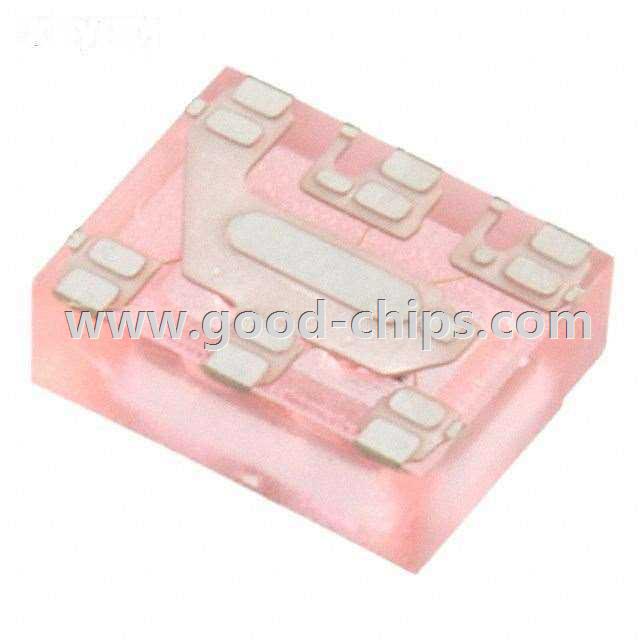

| Manufacturer Part Number: | AEDR-8300-1P2 |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | Optical Sensors - Reflective - Logic Output |
| Available Quantity: | 9310 Pieces |
| Unit Price: | Quote by Email |
| Description: | ENCODER REFL OPT 2CH 150LPI 5V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AEDR-8300-1P2 Datasheet |
| Internal Part Number | 898-AEDR-8300-1P2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | AEDR-8300 Series | |
| Category | Sensors, Transducers | |
| Family | Optical Sensors - Reflective - Logic Output | |
| Manufacturer | Broadcom Limited | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Sensing Distance | 0.079" (2mm) | |
| Sensing Method | Reflective | |
| Sensing Object | Codewheel/Codestrip | |
| Output Configuration | - | |
| Sensing Light | - | |
| Mounting Type | Surface Mount | |
| Current - Supply | 2.2mA | |
| Voltage - Supply | 4.5 V ~ 5.5 V | |
| Package / Case | 5.12mm L x 3.96mm W x 1.63mm H | |
| Features | Compact Model | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AEDR-8300-1P2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AEDR-8300-1P2 is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of AEDR-8300-1P2 is new and unused, you can buy AEDR-8300-1P2 Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AEDR-8300-1P2.
