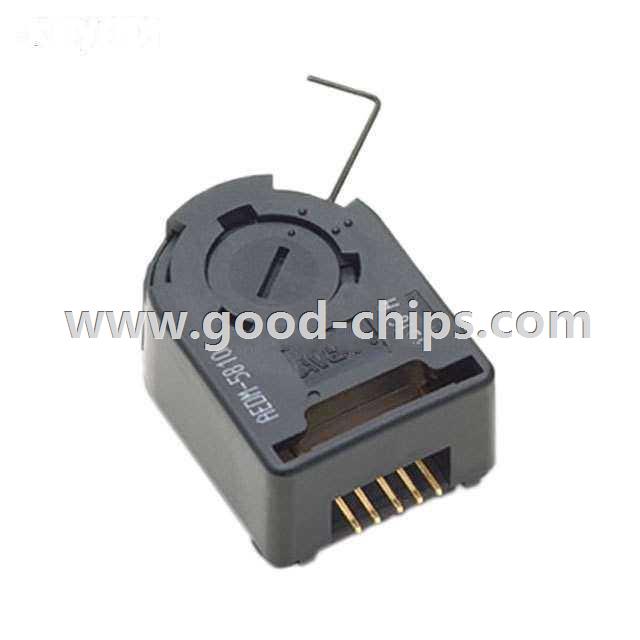

| Manufacturer Part Number: | AEDM-5810-T12 |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | Encoders |
| Available Quantity: | 9035 Pieces |
| Unit Price: | Quote by Email |
| Description: | KIT ENCODER 3CH 2000CPR 6MM |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AEDM-5810-T12 Datasheet |
| Internal Part Number | 898-AEDM-5810-T12 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Sensors, Transducers | |
| Family | Encoders | |
| Manufacturer | Broadcom Limited | |
| Series | - | |
| Part Status | Active | |
| Encoder Type | Optical | |
| Output Type | Quadrature with Index (Incremental) | |
| Pulses per Revolution | 2000 | |
| Voltage - Supply | 4.5 V ~ 5.5 V | |
| Actuator Type | Hole for Shaft | |
| Detent | No | |
| Built in Switch | No | |
| Mounting Type | Chassis Mount, Motors | |
| Orientation | Right Angle | |
| Termination Style | Terminal Pins | |
| Rotational Life (Cycles Min) | - | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AEDM-5810-T12 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AEDM-5810-T12 is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of AEDM-5810-T12 is new and unused, you can buy AEDM-5810-T12 Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AEDM-5810-T12.
