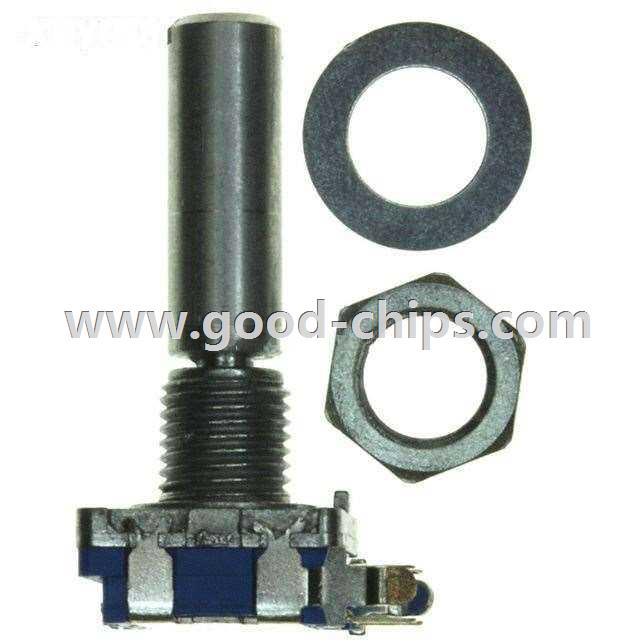

| Manufacturer Part Number: | AEC11BR2E-25SA1-30C15P |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | Encoders |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | ENCODER ROTARY 11MM HORIZ 15PPR |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AEC11BR2E-25SA1-30C15P Datasheet |
| Internal Part Number | 898-AEC11BR2E-25SA1-30C15P | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 10 | |
| Category | Sensors, Transducers | |
| Family | Encoders | |
| Manufacturer | CUI Inc. | |
| Series | - | |
| Part Status | Obsolete | |
| Encoder Type | Mechanical | |
| Output Type | Quadrature (Incremental) | |
| Pulses per Revolution | 15 | |
| Voltage - Supply | 5V | |
| Actuator Type | 6mm Dia Slotted End | |
| Detent | Yes | |
| Built in Switch | Yes | |
| Mounting Type | Panel, PCB Through Hole | |
| Orientation | Right Angle | |
| Termination Style | PC Pin | |
| Rotational Life (Cycles Min) | 15K | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AEC11BR2E-25SA1-30C15P | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AEC11BR2E-25SA1-30C15P is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of AEC11BR2E-25SA1-30C15P is new and unused, you can buy AEC11BR2E-25SA1-30C15P CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AEC11BR2E-25SA1-30C15P.
