Manufacturer Part Number: | ADZS-SC584-EZBRD |
---|---|
Manufacturer: | Analog Devices Inc. |
Product Category: | Evaluation Boards - Embedded - MCU, DSP |
Available Quantity: | 9012 Pieces |
Unit Price: | Quote by Email |

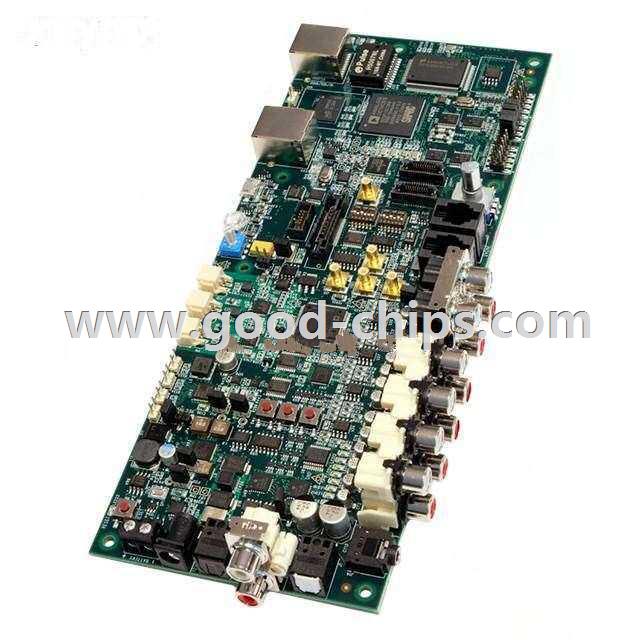

Description: | ADSP-SC584 EZ-Board™ SHARC® DSP ARM® Cortex®-A5 Embedded Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ADZS-SC584-EZBRD Datasheet |
Internal Part Number | 898-ADZS-SC584-EZBRD | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | ADSP-SC584 EZ-Board Schematic ADSP-SC584 EZ Kit Brd Design Database Development Tool Selector | |
Online Catalog | ADSP-SC58x Lite and EZ-Board® Evaluation Systems | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Embedded - MCU, DSP | |
Manufacturer | Analog Devices Inc. | |
Series | SHARC® | |
Part Status | Active | |
Board Type | Evaluation Platform | |
Type | DSP | |
Core Processor | ARM® Cortex®-A5 | |
Operating System | - | |
Platform | EZ-Board™ | |
For Use With/Related Products | ADSP-SC584 | |
Mounting Type | Fixed | |
Contents | Board(s), Cable(s), Power Supply | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ADZS-SC584-EZBRD | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ADZS-SC584-EZBRD is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADZS-SC584-EZBRD is new and unused, you can buy ADZS-SC584-EZBRD Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADZS-SC584-EZBRD.
