| Manufacturer Part Number: | ADZS-BF506F-EZLITE |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation Boards - Embedded - MCU, DSP |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |

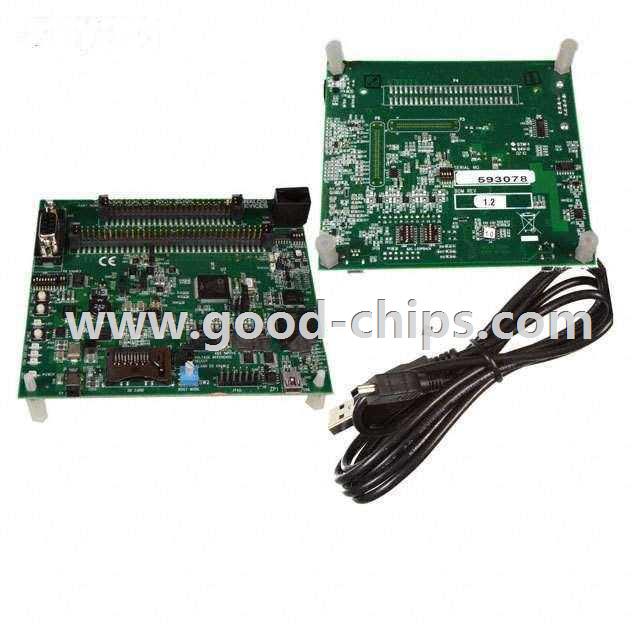

| Description: | ADSP-BF504, ADSP-BF506F EZ-KIT Lite® Blackfin® DSP Embedded Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADZS-BF506F-EZLITE Datasheet |
| Internal Part Number | 898-ADZS-BF506F-EZLITE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Featured Product | Blackfin® BF50x Series Processors BF506F EZ-KIT Lite® for ADSP-BF50X Blackfin® Family | |
| Online Catalog | ADSP-BF506F Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Embedded - MCU, DSP | |
| Manufacturer | Analog Devices Inc. | |
| Series | Blackfin® | |
| Part Status | Active | |
| Board Type | Evaluation Platform | |
| Type | DSP | |
| Core Processor | - | |
| Operating System | - | |
| Platform | EZ-KIT Lite® | |
| For Use With/Related Products | ADSP-BF504, ADSP-BF506F | |
| Mounting Type | Fixed | |
| Contents | Board(s), Cable(s) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADZS-BF506F-EZLITE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADZS-BF506F-EZLITE is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADZS-BF506F-EZLITE is new and unused, you can buy ADZS-BF506F-EZLITE Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADZS-BF506F-EZLITE.
