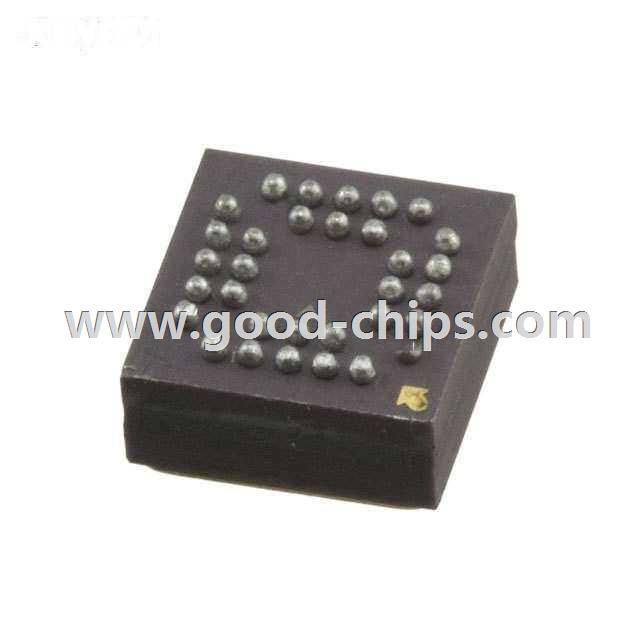

Manufacturer Part Number: | ADXRS646TBGZ-EP-RL |
---|---|
Manufacturer: | Analog Devices Inc. |
Product Category: | Motion Sensors - Gyroscopes |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Gyroscope Z (Yaw) ±250 1kHz Analog Voltage 32-CBGA (7x7) |
Lead Free Status / RoHS Status: | Lead free by exemption / RoHS compliant by exemption |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ADXRS646TBGZ-EP-RL Datasheet |
Internal Part Number | 898-ADXRS646TBGZ-EP-RL | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | MEMS Based Inertial Measurement Units | |
PCN Design/Specification | ADXRS646 Die and Datasheet Revision 17/Oct/2013 | |
PCN Assembly/Origin | MEMS Devices Second Source 22/Aug/2013 | |
Category | Sensors, Transducers | |
Family | Motion Sensors - Gyroscopes | |
Manufacturer | Analog Devices Inc. | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Analog | |
Axis | Z (Yaw) | |
Range °/s | ±250 | |
Sensitivity (LSB/(°/s)) | - | |
Sensitivity (mV/°/s) | 9 | |
Bandwidth | 1kHz | |
Output Type | Analog Voltage | |
Voltage - Supply | 5.75 V ~ 6.25 V | |
Current - Supply | 4mA | |
Features | Temperature Sensor | |
Operating Temperature | -55°C ~ 105°C (TA) | |
Package / Case | 32-BFCBGA | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ADXRS646TBGZ-EP-RL | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ADXRS646TBGZ-EP-RL is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADXRS646TBGZ-EP-RL is new and unused, you can buy ADXRS646TBGZ-EP-RL Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADXRS646TBGZ-EP-RL.
