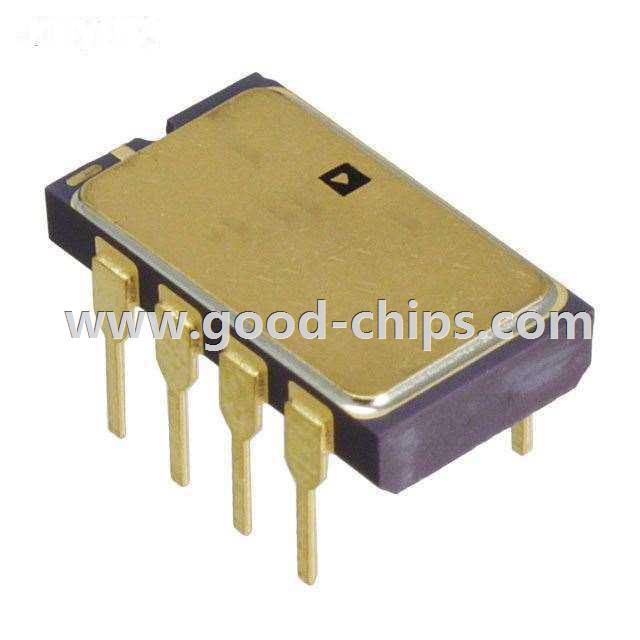

| Manufacturer Part Number: | ADXL206HDZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Motion Sensors - Accelerometers |
| Available Quantity: | 9034 Pieces |
| Unit Price: | Quote by Email |
| Description: | Accelerometer X, Y Axis ±5g 0.5Hz ~ 2.5kHz 8-CSBDIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADXL206HDZ Datasheet |
| Internal Part Number | 898-ADXL206HDZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | High Temp Products and Application | |
| Video File | MEMS Based Inertial Measurement Units | |
| PCN Assembly/Origin | Revision A with Multiple Changes 17/Oct/2013 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | ADXL206 | |
| Category | Sensors, Transducers | |
| Family | Motion Sensors - Accelerometers | |
| Manufacturer | Analog Devices Inc. | |
| Series | iMEMS® | |
| Packaging | Tube | |
| Part Status | Active | |
| Type | Analog | |
| Axis | X, Y | |
| Acceleration Range | ±5g | |
| Sensitivity (LSB/g) | - | |
| Sensitivity (mV/g) | 312 | |
| Bandwidth | 0.5Hz ~ 2.5kHz | |
| Output Type | Analog Voltage | |
| Voltage - Supply | 4.75 V ~ 5.25 V | |
| Features | Adjustable Bandwidth | |
| Operating Temperature | -40°C ~ 175°C (TA) | |
| Mounting Type | Through Hole | |
| Package / Case | 8-CDIP (0.300", 7.62mm) | |
| Supplier Device Package | 8-CSBDIP | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADXL206HDZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADXL206HDZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADXL206HDZ is new and unused, you can buy ADXL206HDZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADXL206HDZ.
