| Manufacturer Part Number: | ADUM7641ARQZ-RL7 |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Digital Isolators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | General Purpose Digital Isolator 1000Vrms 6 Channel 1Mbps 15kV/µs CMTI 20-SSOP (0.154", 3.90mm Width) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADUM7641ARQZ-RL7 Datasheet |
| Internal Part Number | 898-ADUM7641ARQZ-RL7 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | iCoupler Digital Isolators Meet Strict HEV/EV Requirements ezLINX™ iCoupler® Isolated Interface Development Environment iCoupler® Digital Isolators in Motor Control Designs | |
| Category | Isolators | |
| Family | Digital Isolators | |
| Manufacturer | Analog Devices Inc. | |
| Series | iCoupler® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Technology | Magnetic Coupling | |
| Type | General Purpose | |
| Isolated Power | No | |
| Number of Channels | 6 | |
| Inputs - Side 1/Side 2 | 5/1 | |
| Channel Type | Unidirectional | |
| Voltage - Isolation | 1000Vrms | |
| Common Mode Transient Immunity (Min) | 15kV/µs | |
| Data Rate | 1Mbps | |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns | |
| Pulse Width Distortion (Max) | 25ns | |
| Rise / Fall Time (Typ) | 2ns, 2ns | |
| Voltage - Supply | 3 V ~ 5.5 V | |
| Operating Temperature | -40°C ~ 105°C | |

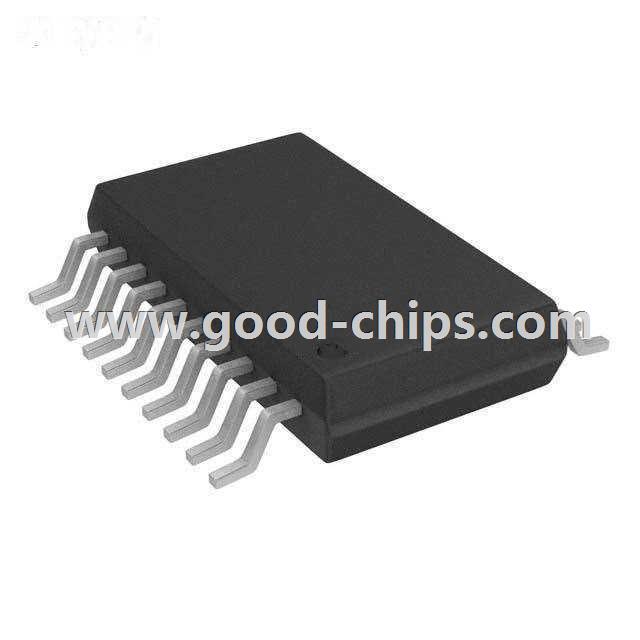

| Package / Case | 20-SSOP (0.154", 3.90mm Width) | |
| Supplier Device Package | 20-QSOP | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADUM7641ARQZ-RL7 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADUM7641ARQZ-RL7 is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADUM7641ARQZ-RL7 is new and unused, you can buy ADUM7641ARQZ-RL7 Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADUM7641ARQZ-RL7.
