| Manufacturer Part Number: | ADUM142E1BRWZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Digital Isolators |
| Available Quantity: | 9133 Pieces |
| Unit Price: | Quote by Email |
| Description: | General Purpose Digital Isolator 3750Vrms 4 Channel 150Mbps 75kV/µs CMTI 16-SOIC (0.295", 7.50mm Width) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADUM142E1BRWZ Datasheet |
| Internal Part Number | 898-ADUM142E1BRWZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Robust iCoupler® Digital Isolators | |
| Online Catalog | ADuM140, 41, 42D/E Series | |
| Category | Isolators | |
| Family | Digital Isolators | |
| Manufacturer | Analog Devices Inc. | |
| Series | iCoupler® | |
| Packaging | Tube | |
| Part Status | Active | |
| Technology | Magnetic Coupling | |
| Type | General Purpose | |
| Isolated Power | No | |
| Number of Channels | 4 | |
| Inputs - Side 1/Side 2 | 2/2 | |
| Channel Type | Unidirectional | |
| Voltage - Isolation | 3750Vrms | |
| Common Mode Transient Immunity (Min) | 75kV/µs | |
| Data Rate | 150Mbps | |
| Propagation Delay tpLH / tpHL (Max) | 13ns, 13ns | |
| Pulse Width Distortion (Max) | 3ns | |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns | |
| Voltage - Supply | 1.7 V ~ 5.5 V | |
| Operating Temperature | -40°C ~ 125°C | |

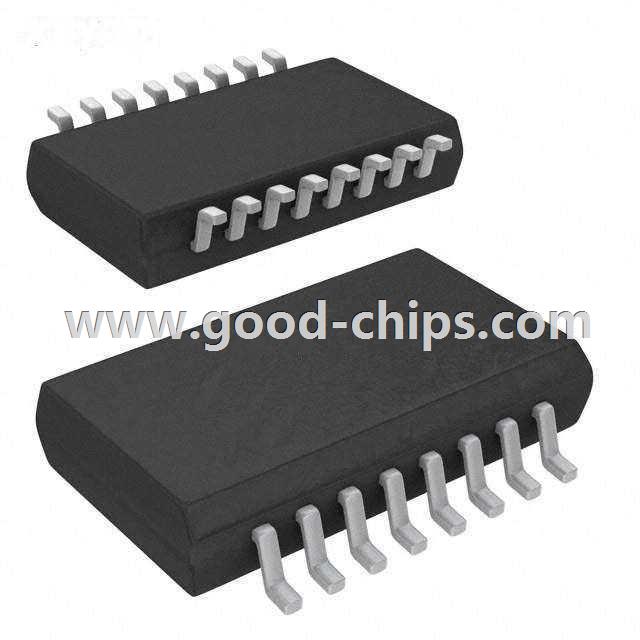

| Package / Case | 16-SOIC (0.295", 7.50mm Width) | |
| Supplier Device Package | 16-SOIC | |
| Standard Package | 47 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADUM142E1BRWZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADUM142E1BRWZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADUM142E1BRWZ is new and unused, you can buy ADUM142E1BRWZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADUM142E1BRWZ.
