| Manufacturer Part Number: | ADSP-BF506KSWZ-4F |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Embedded - DSP (Digital Signal Processors) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC DSP 12BIT 400MHZ 120LQFP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADSP-BF506KSWZ-4F Datasheet |
| Internal Part Number | 898-ADSP-BF506KSWZ-4F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Renewable Energy—Solar PV Solutions | |
| PCN Obsolescence/ EOL | Multiple Devices 08/Aug/2014 | |
| PCN Design/Specification | ADSP-BF504,6 Datasheet Update 19/May/2014 | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - DSP (Digital Signal Processors) | |
| Manufacturer | Analog Devices Inc. | |
| Series | Blackfin® | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Type | Fixed Point | |
| Interface | CAN, EBI/EMI, I²C, IrDA, PPI, SPI, SPORT, UART/USART | |
| Clock Rate | 400MHz | |
| Non-Volatile Memory | FLASH (16MB) | |
| On-Chip RAM | 68kB | |
| Voltage - I/O | 3.30V | |
| Voltage - Core | 1.29V | |
| Operating Temperature | 0°C ~ 70°C (TA) | |
| Mounting Type | Surface Mount | |

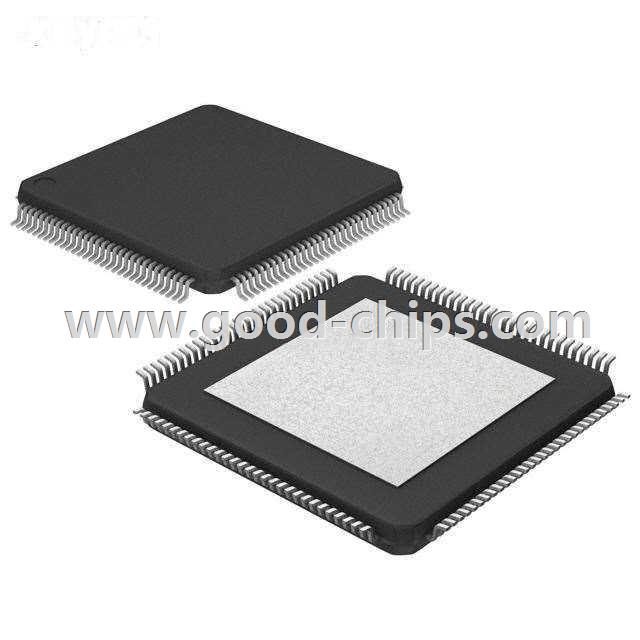

| Package / Case | 120-LQFP Exposed Pad | |
| Supplier Device Package | 120-LQFP-EP (14x14) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADSP-BF506KSWZ-4F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADSP-BF506KSWZ-4F is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADSP-BF506KSWZ-4F is new and unused, you can buy ADSP-BF506KSWZ-4F Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADSP-BF506KSWZ-4F.
