Manufacturer Part Number: | ADP3209CJCPZ-RL |
---|---|
Manufacturer: | ON Semiconductor |
Product Category: | PMIC - Voltage Regulators - Special Purpose |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | - Controller, Power Supplies for Next-Generation Intel Processors Voltage Regulator IC 1 Output 32-LFCSP-VQ (5x5) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ADP3209CJCPZ-RL Datasheet |
Internal Part Number | 898-ADP3209CJCPZ-RL | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | Multiple Devices 30/Sept/2011 | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Voltage Regulators - Special Purpose | |
Manufacturer | ON Semiconductor | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Applications | Controller, Power Supplies for Next-Generation Intel Processors | |
Voltage - Input | 3.3 V ~ 22 V | |
Number of Outputs | 1 | |
Voltage - Output | 0.4 V ~ 1.25 V | |
Operating Temperature | 0°C ~ 100°C | |
Mounting Type | Surface Mount | |

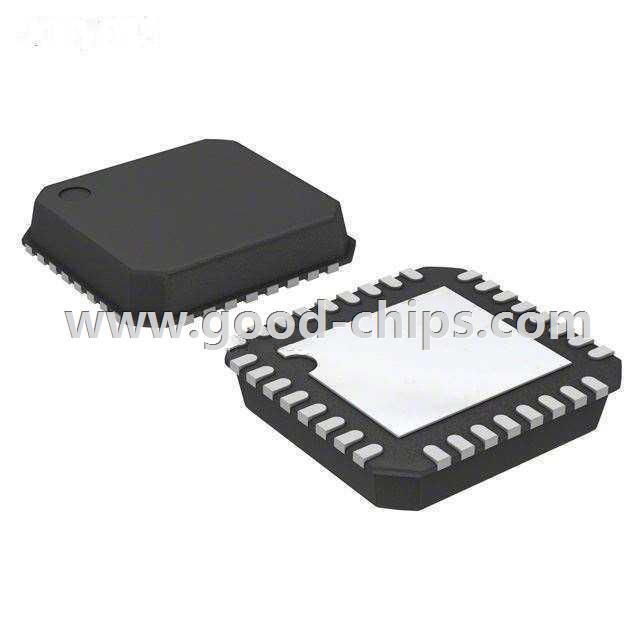

Package / Case | 32-VFQFN Exposed Pad, CSP | |
Supplier Device Package | 32-LFCSP-VQ (5x5) | |
Standard Package | 5,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ADP3209CJCPZ-RL | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ADP3209CJCPZ-RL is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of ADP3209CJCPZ-RL is new and unused, you can buy ADP3209CJCPZ-RL ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADP3209CJCPZ-RL.
