| Manufacturer Part Number: | ADP3198AJCPZ-RL |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | PMIC - Voltage Regulators - Special Purpose |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | - Controller, Intel VRM Voltage Regulator IC 4 Output 40-LFCSP-VQ (6x6) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADP3198AJCPZ-RL Datasheet |
| Internal Part Number | 898-ADP3198AJCPZ-RL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 05/Oct/2010 | |
| PCN Part Number | ADI to ON Semi 19/Dec/2007 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - Special Purpose | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Applications | Controller, Intel VRM | |
| Voltage - Input | 12V | |
| Number of Outputs | 4 | |
| Voltage - Output | 0.5 V ~ 1.6 V | |
| Operating Temperature | 0°C ~ 85°C | |
| Mounting Type | Surface Mount | |

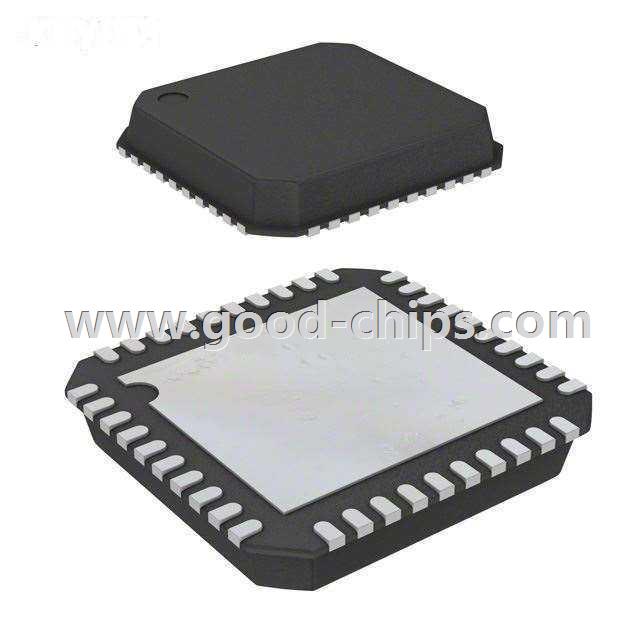

| Package / Case | 40-VFQFN Exposed Pad, CSP | |
| Supplier Device Package | 40-LFCSP-VQ (6x6) | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADP3198AJCPZ-RL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADP3198AJCPZ-RL is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of ADP3198AJCPZ-RL is new and unused, you can buy ADP3198AJCPZ-RL ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADP3198AJCPZ-RL.
